Polycarbonate Roofing Sheet — Solid, Multiwall and Corrugated, Chosen for Indian Sun

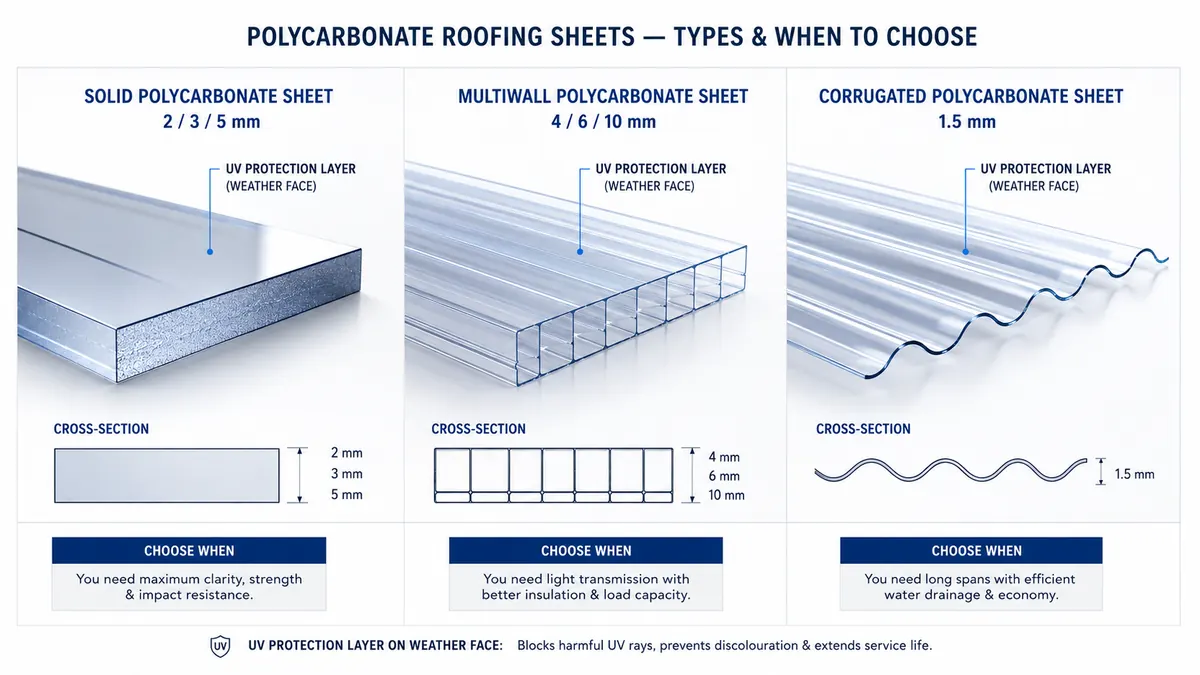

Solid vs multiwall vs corrugated — the three constructions, decided honestly

Most pages selling a polycarbonate sheet for roof work never tell you there are three different constructions, let alone when each one is wrong. Here is the chooser we use on our own builds:

The pattern to remember: solid for clarity, multiwall for coverage, corrugated for matching a profiled roof. All three families we supply are UV-protected roofing grades — that is a locked spec, not an optional extra.

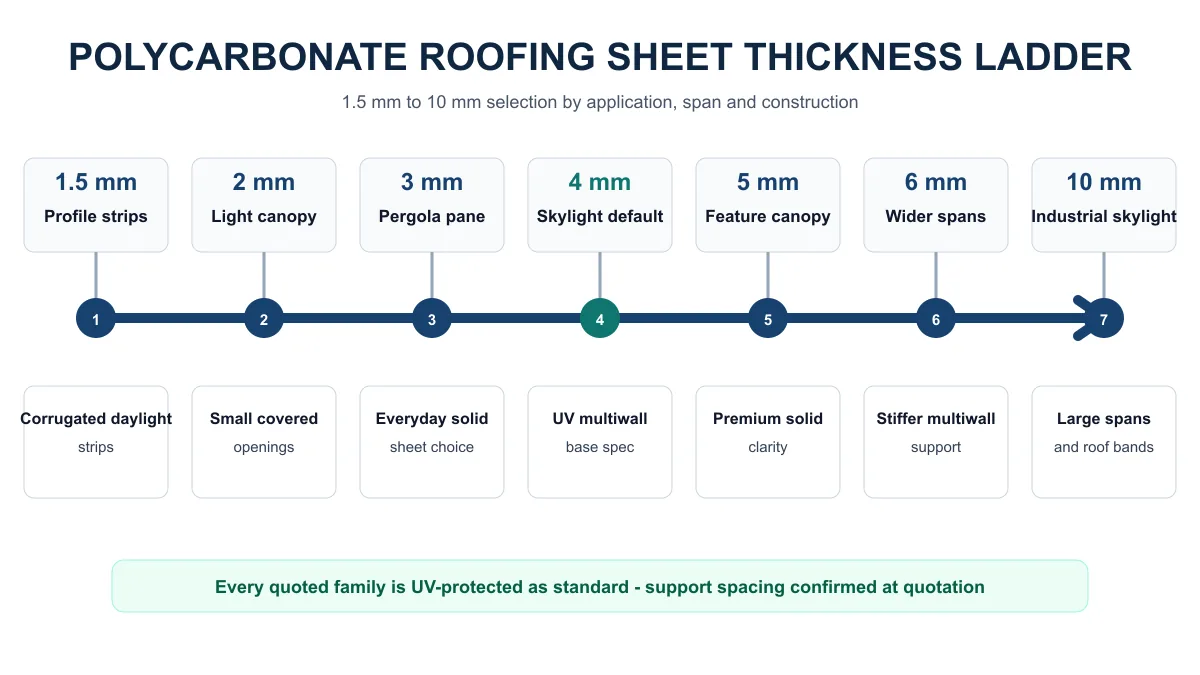

Thickness — what each millimetre is actually for

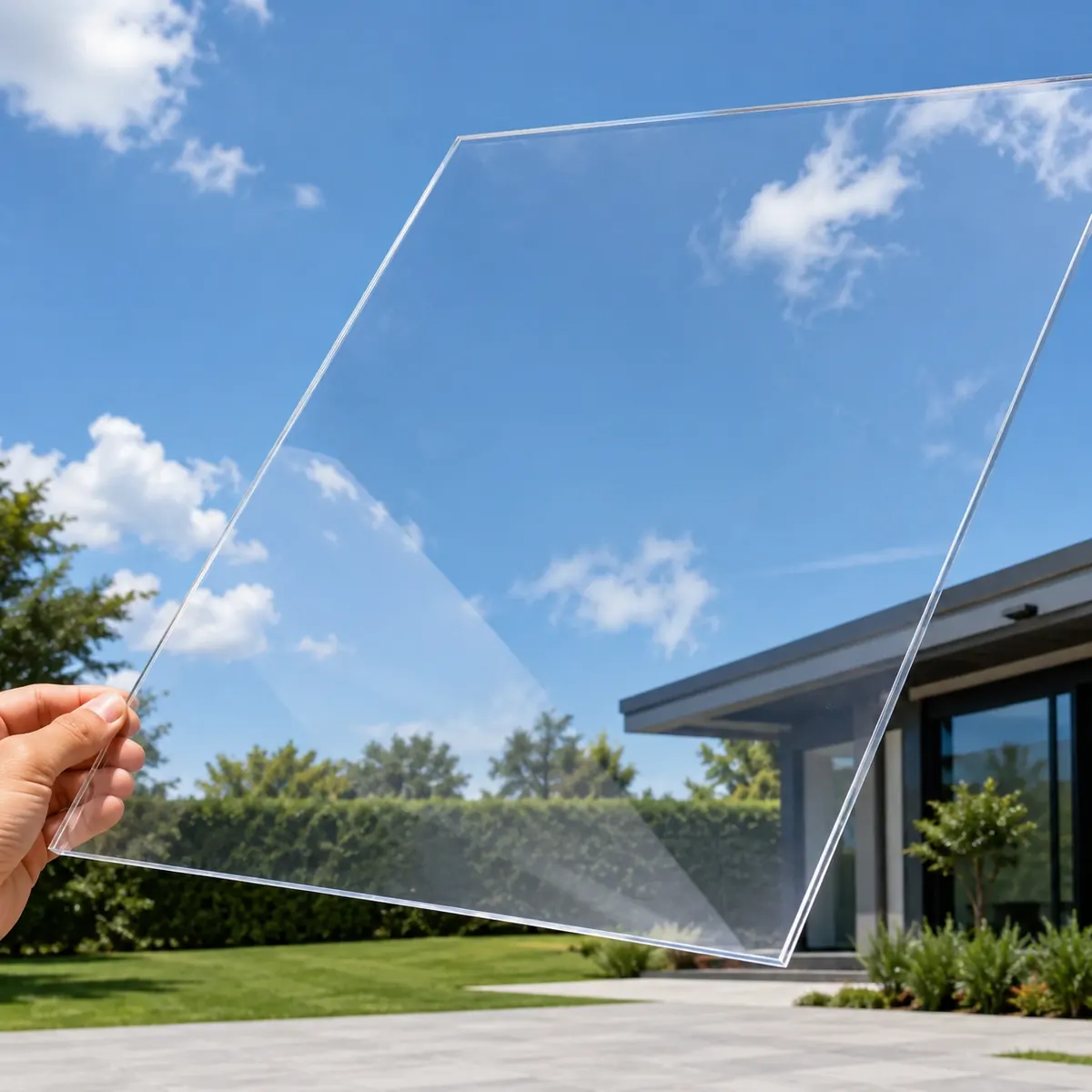

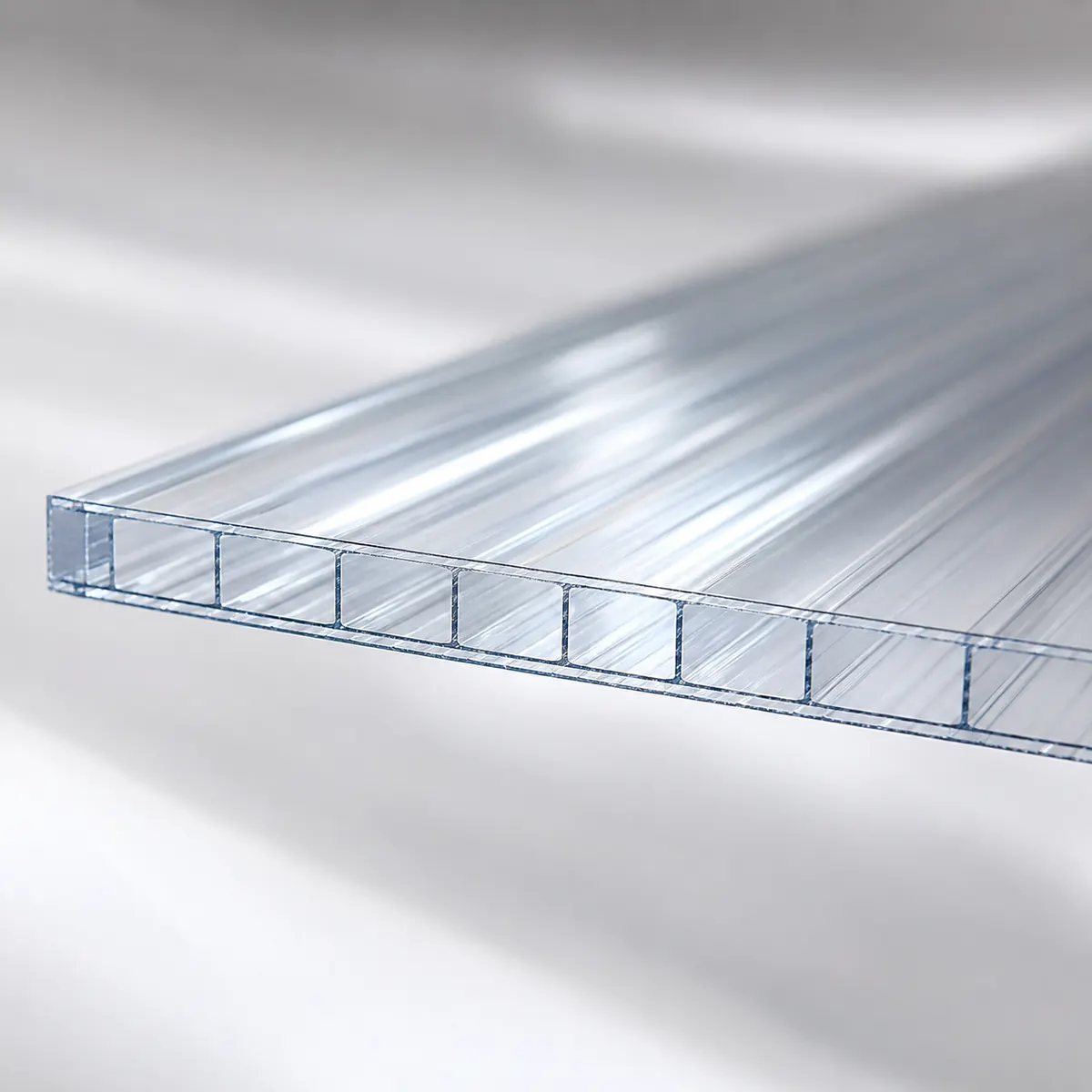

Transparent sheets run 1.5 to 10 mm in our range, and the right answer follows the application, not the budget alone. The honest mapping: 1.5 mm corrugated is purpose-made for profile-matched daylight strips and corrugated transparent roofs; 2 mm solid suits light canopies and small covered openings; 3 mm solid is the standard pergola and canopy pane; 4 mm multiwall is the everyday skylight and walkway default — and the base spec behind our From-price; 5 mm solid is the premium clarity choice for entrance canopies and feature roofs; 6 mm multiwall steps up stiffness for wider support spacing; 10 mm multiwall is the industrial answer — large skylights and spans where a thin sheet would drum and deflect. Support spacing depends on thickness, profile and wind exposure, so we confirm the span design at quotation rather than quoting a one-line rule that fails on your site.

UV coating — why cheap transparent sheets yellow in a few years

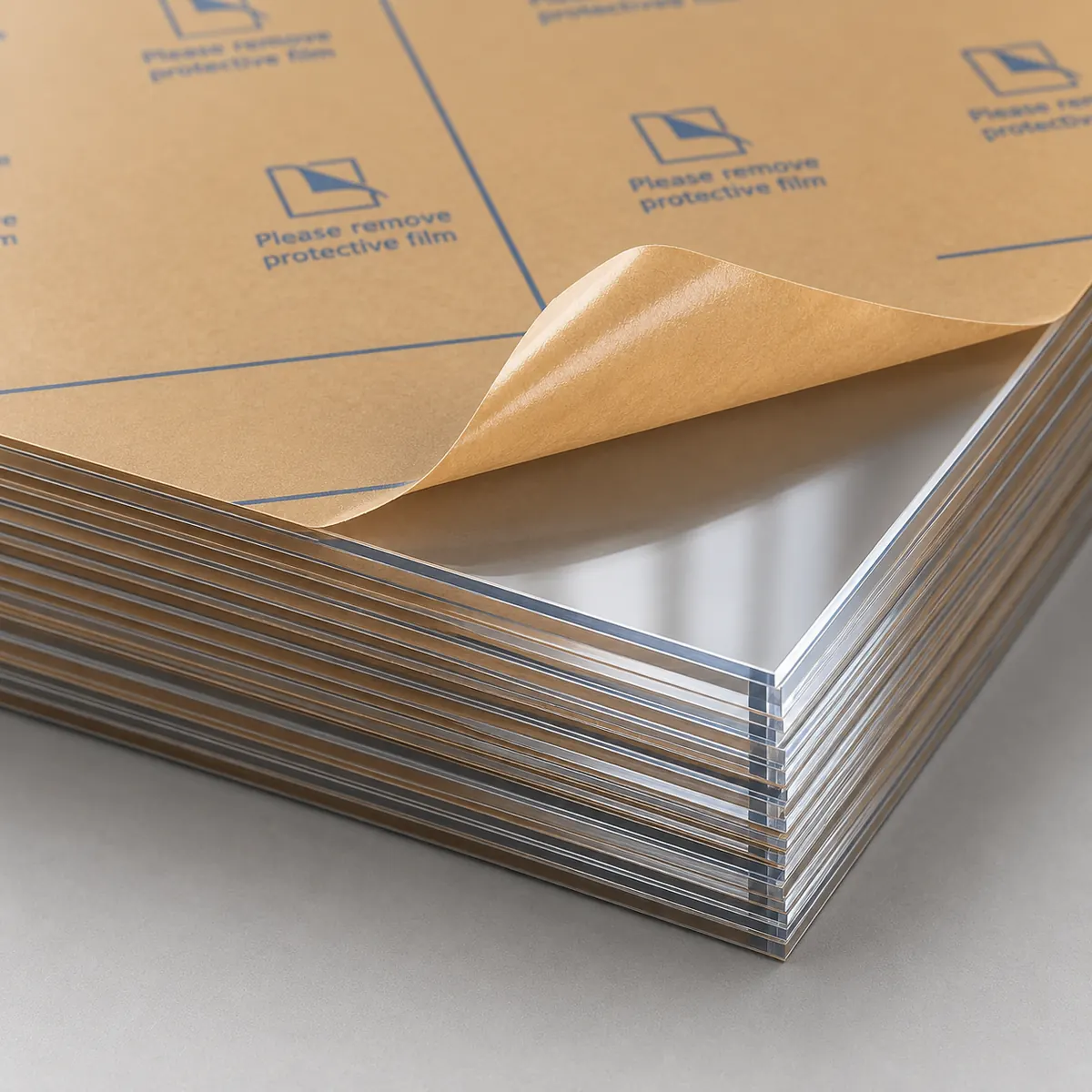

This is the spec that separates a roofing-grade polycarbonate sheet from a bargain that becomes brittle confetti. Raw polycarbonate degrades under ultraviolet light: unprotected sheet exposed to Indian sun visibly yellows, loses clarity and turns brittle within a few years. Roofing grades solve this with a co-extruded UV-protective layer bonded to the weather face during manufacture — not a paint or film that peels, but part of the sheet itself. Two buying rules follow. First, ask in writing whether the sheet is UV-coated and on which face — every sheet family we quote is UV-protected as standard, and the UV documentation is confirmed with the quotation. Second, install the UV face up. The protected side is marked on the masking film; fit it downward and even a premium sheet ages like a cheap one. If a competing quote is much cheaper for the "same 4 mm sheet", the missing UV layer is the first place to look.

Light vs heat — the honest physics of a transparent roof

Here is the sentence most sellers of transparent roofing will not write: a clear roof brings in daylight AND heat — that is the same physics that makes greenhouses work. Under full sun, a fully transparent roof over a sitting area or work floor turns it into the warm side of a greenhouse by afternoon. So specify transparency deliberately: use clear sheet where light is the whole point — greenhouses, plant areas, daylight strips over aisles and corridors; use it as a portion of the roof (a skylight band, not the whole roof) over occupied spaces; and remember multiwall's air flutes temper the effect compared with thin clear sheet, which is one more reason it is the everyday skylight default. And when the real requirement is a bright but genuinely cool interior — offices, cabins, work floors through an Indian summer — the honest answer is an insulated roof with designed daylight openings, not an all-transparent one; that insulated layer is PUF panel roofing we manufacture ourselves. Daylight is a design decision. We help you make it, not oversell it.

Where polycarbonate roofing works — skylights, pergolas, canopies, greenhouses

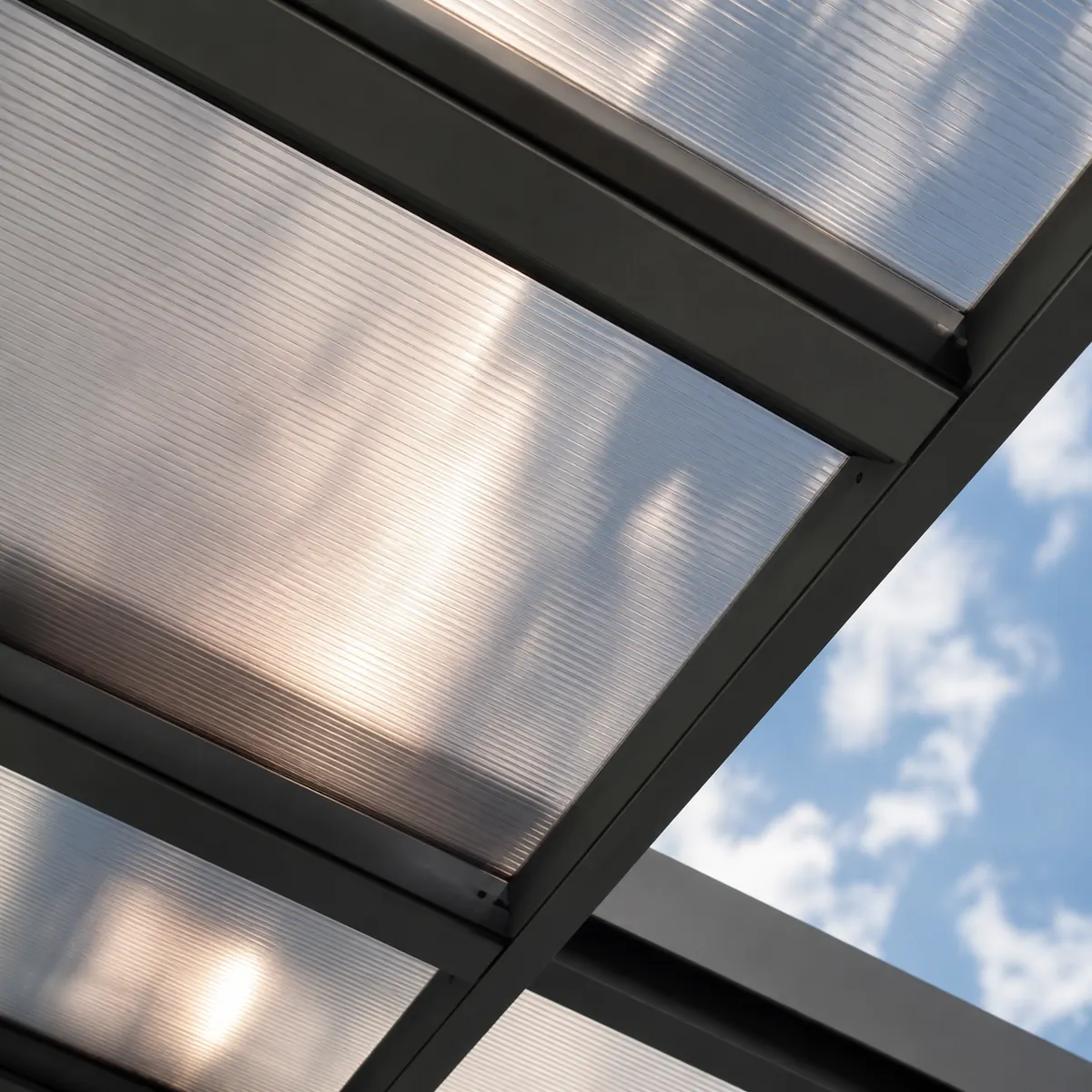

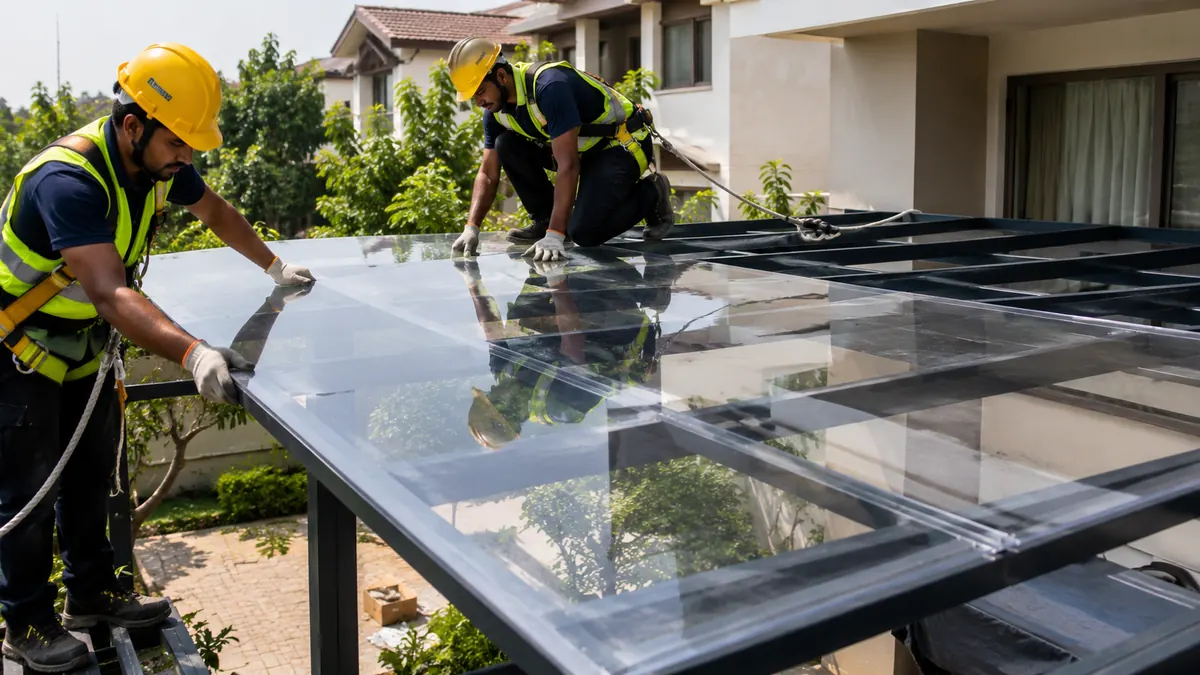

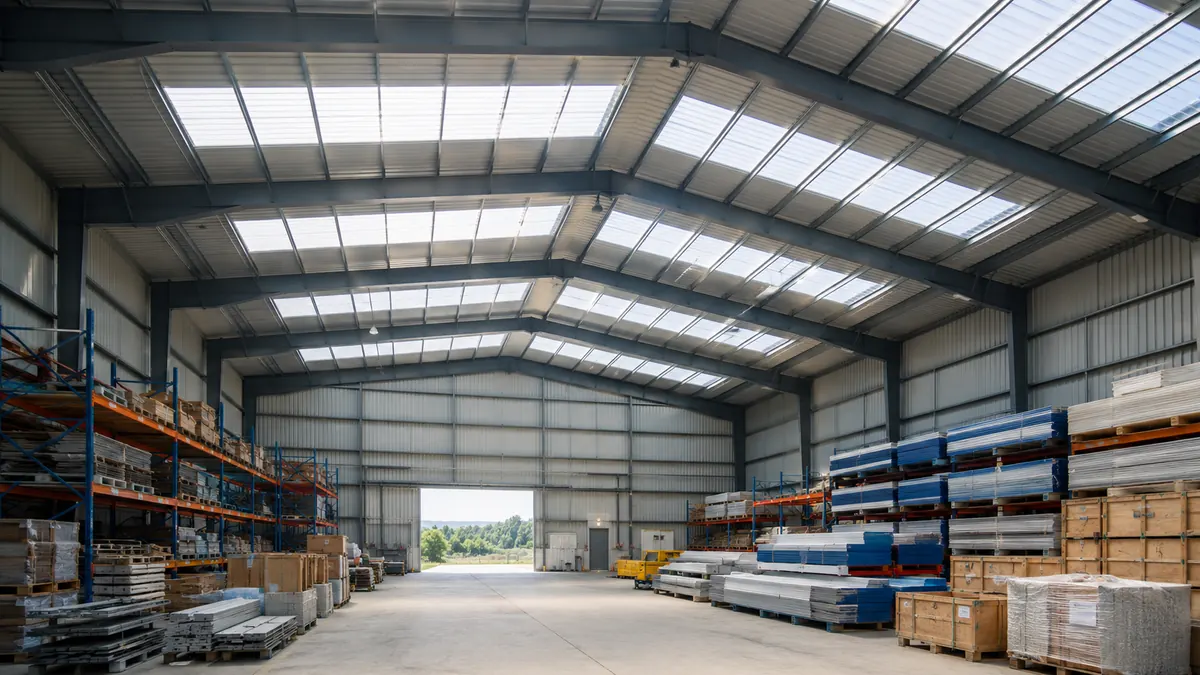

Skylights and daylight strips: the highest-value use — a band of multiwall or profile-matched corrugated sheet set into an opaque roof cuts daytime lighting load exactly where work happens. Pergolas: solid 3 mm (or 5 mm for larger panes) keeps the open-sky feel while actually keeping rain off; the frame stays light because the sheet is a fraction of glass weight. Entrance and walkway canopies: solid or multiwall over mild-steel framing — the standard answer for buildings, shops and site walkways that need cover without darkness. Greenhouses and plant sheds: multiwall is the working choice — diffused light, lighter frames, and far more forgiving than glass around ladders and hail. Sheds and utility roofs: corrugated transparent sheet, either full-cover or as strips within a metal roof. Same three constructions everywhere — the application just changes which one leads.

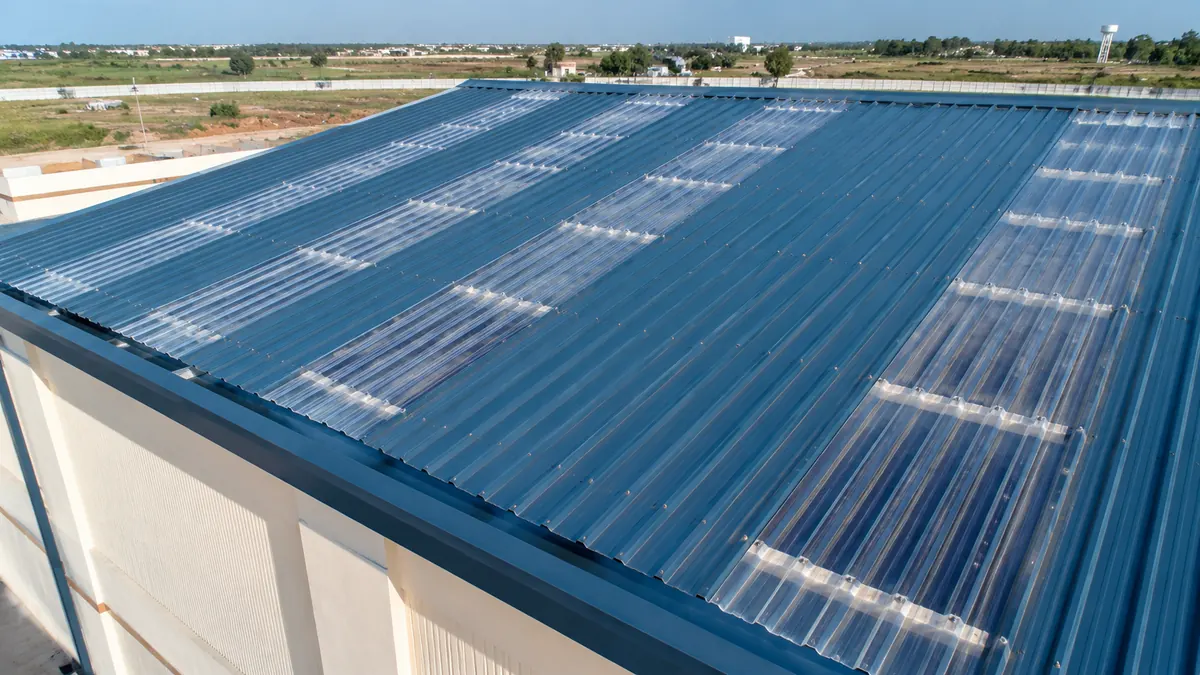

Daylight strips inside a metal roof — the pairing nobody explains

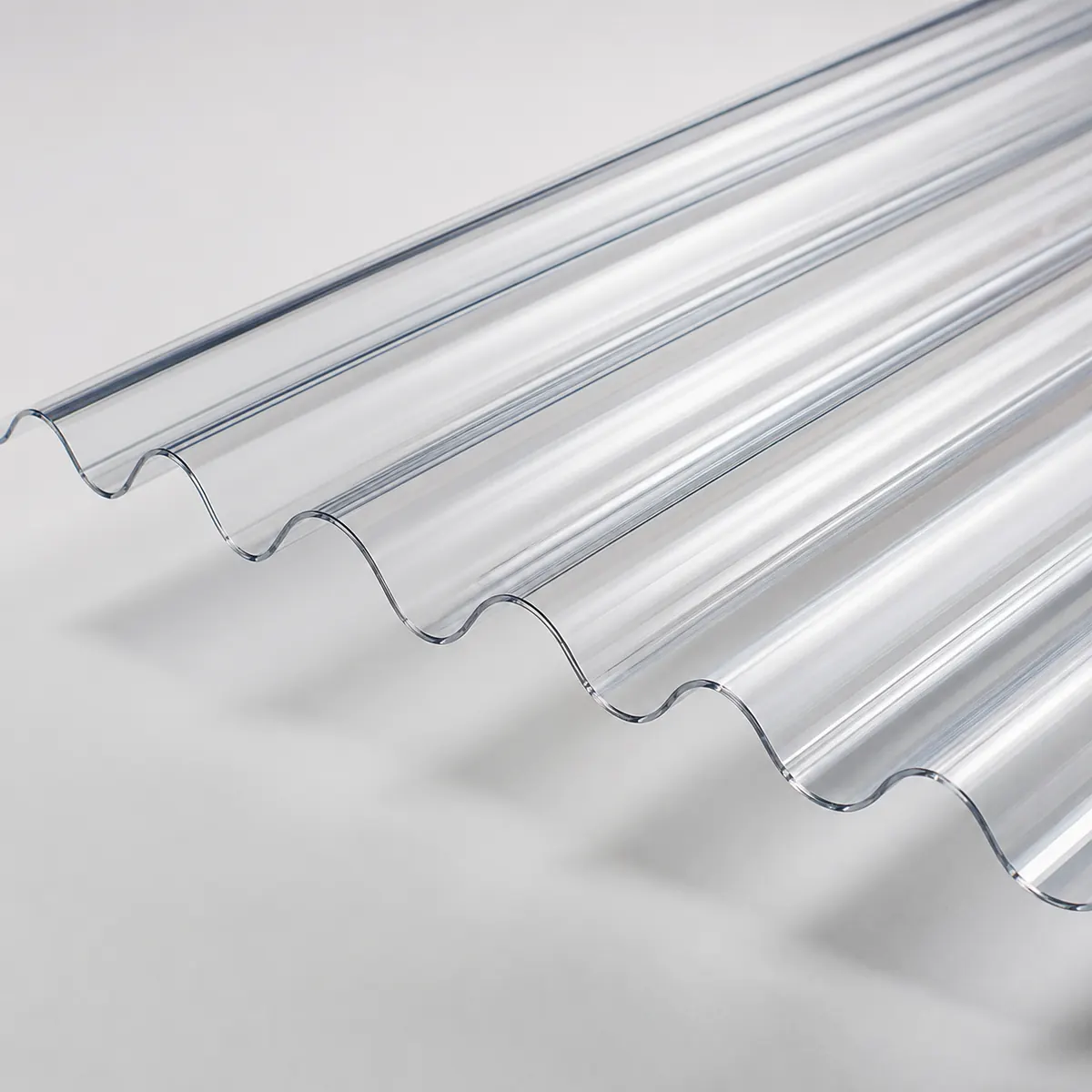

The most cost-effective daylighting in Indian industrial roofing is not a skylight unit — it is replacing every nth metal sheet with a 1.5 mm corrugated polycarbonate sheet in the matching profile. Because our corrugated transparent sheets are profile-matched, they lap into the metal run like any other sheet: same overlap, same purlin line, no curbs, no flashing kits, no leak-prone transition. A shed that would need tube lights at noon gets free daylight down every strip line. Two rules make it work: match the profile exactly (a near-match profile is a guaranteed leak), and fix the polycarbonate strip with the oversized-hole method below, not like the steel around it. We supply the metal and transparent sheets together so profiles match by construction, and quote the strips as visible line items.

Fixing rules — the mistakes that crack transparent roofs

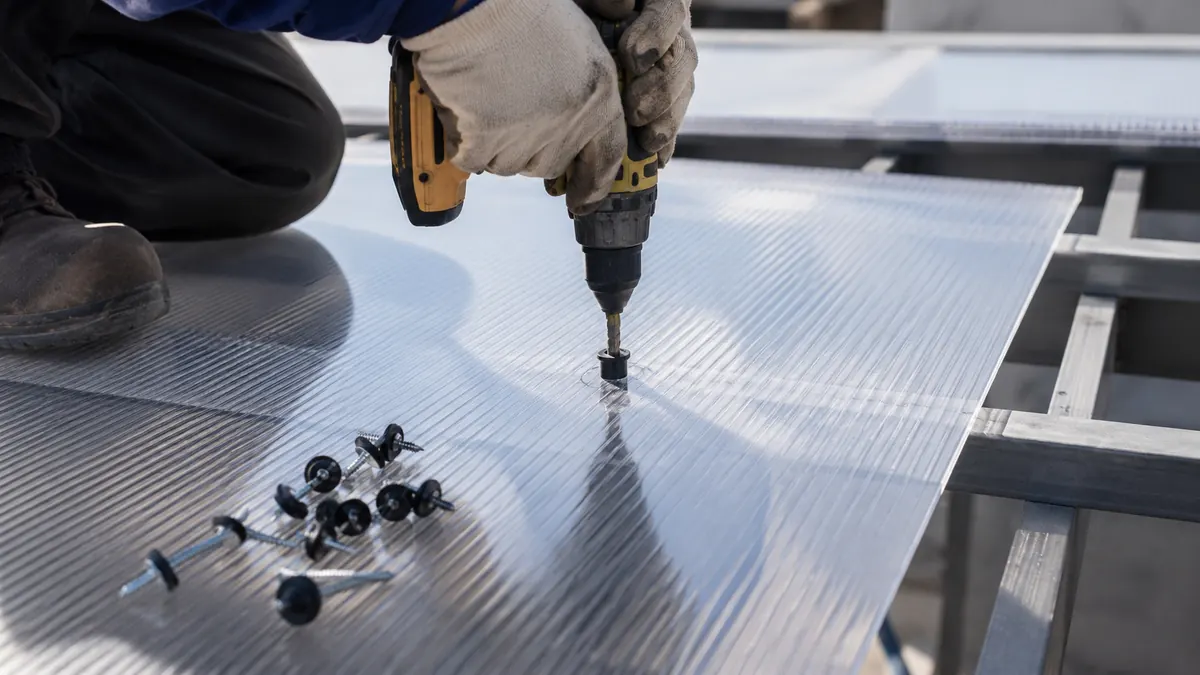

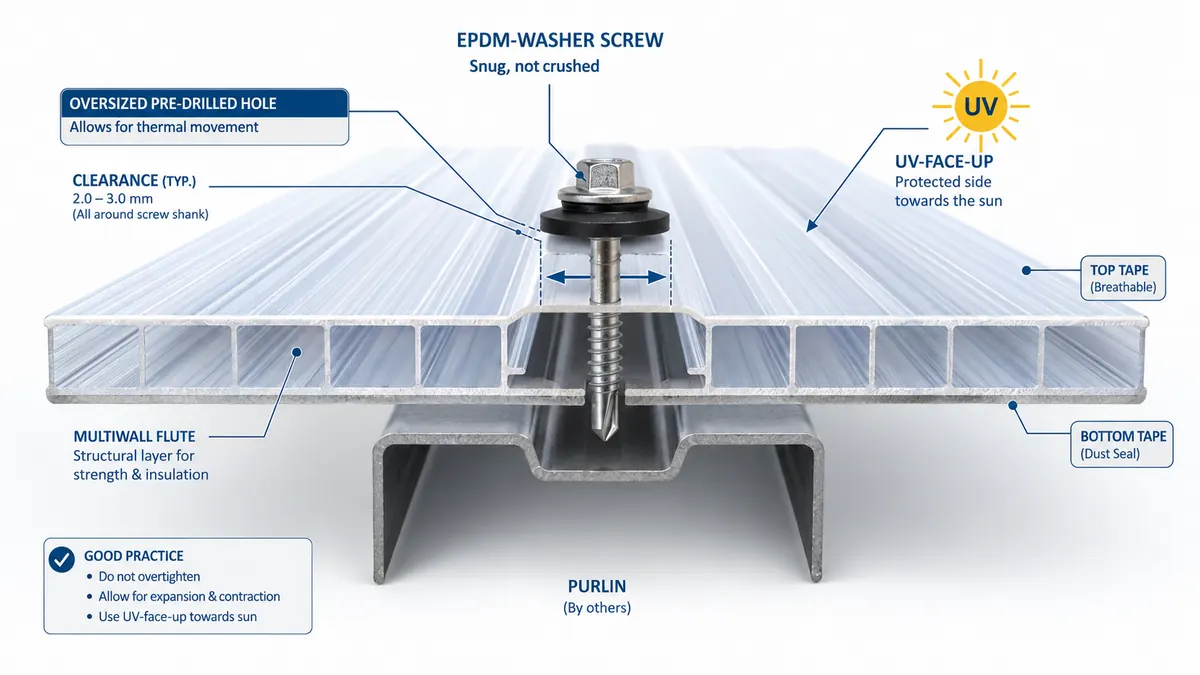

The installation videos ranking for this product exist for a reason: most polycarbonate failures are fixing failures. The rules, plainly: (1) Pre-drill every hole oversized — polycarbonate expands and contracts with heat far more than steel, and a tight screw hole becomes a crack at the first hot afternoon; the oversized hole gives the sheet room to move around the screw. (2) Never over-tighten. Use self-drilling or self-tapping screws with EPDM-washer profiles made for sheet roofing, snugged just enough to seal — a crushed washer and a dimpled sheet is a leak and a future crack. (3) UV face up, always (it is marked on the masking film). (4) Support spacing per thickness — thin sheet over lazy purlin spacing drums in wind and sags in heat; we state the spacing for your sheet at quotation. (5) On multiwall, run the flutes down-slope and seal the ends properly — solid aluminium tape on the top edge, breathable tape at the bottom, so the flutes drain and never grow the grey algae line that ruins the look. Cutting is the easy part: a fine-tooth circular saw or jigsaw for solid and corrugated sheet, and multiwall cuts cleanly with a sharp utility knife; leave the masking film on while cutting and drilling, and peel it only after fixing.

Sizes and ordering — the simple math

Solid sheets come as 1220 × 2440 mm and 2050 × 3050 mm panes; multiwall sheets come in 1220 mm and 2100 mm widths; corrugated transparent sheets follow the metal profile they match, so their covered width is the profile's covered width. For pergolas and canopies, plan panes to land joints on frame members — a joint in mid-air is a sag line. For daylight strips, count in whole profile widths. Send the frame or roof dimensions with your enquiry and the quotation comes back with a cutting-and-count plan, screws and tapes included as visible line items — the accessories are small money, but forgetting them stalls an installation for a week.

What decides the price

Construction first — multiwall gives the lowest cost per covered foot, solid costs more for its clarity, corrugated sits between — then thickness, sheet size, quantity and delivery distance. The From ₹66/sq ft base is the 4 mm UV multiwall spec; the full transparent-sheet rate card joins the roofing price page when Phase 2 opens. GST, transport, unloading and accessories are always separate lines, per the fixed-rate policy on every SAMAN quotation, and there is no "UV extra" line — UV protection is standard in every family we quote, not an upsell.

Delivery and quotation

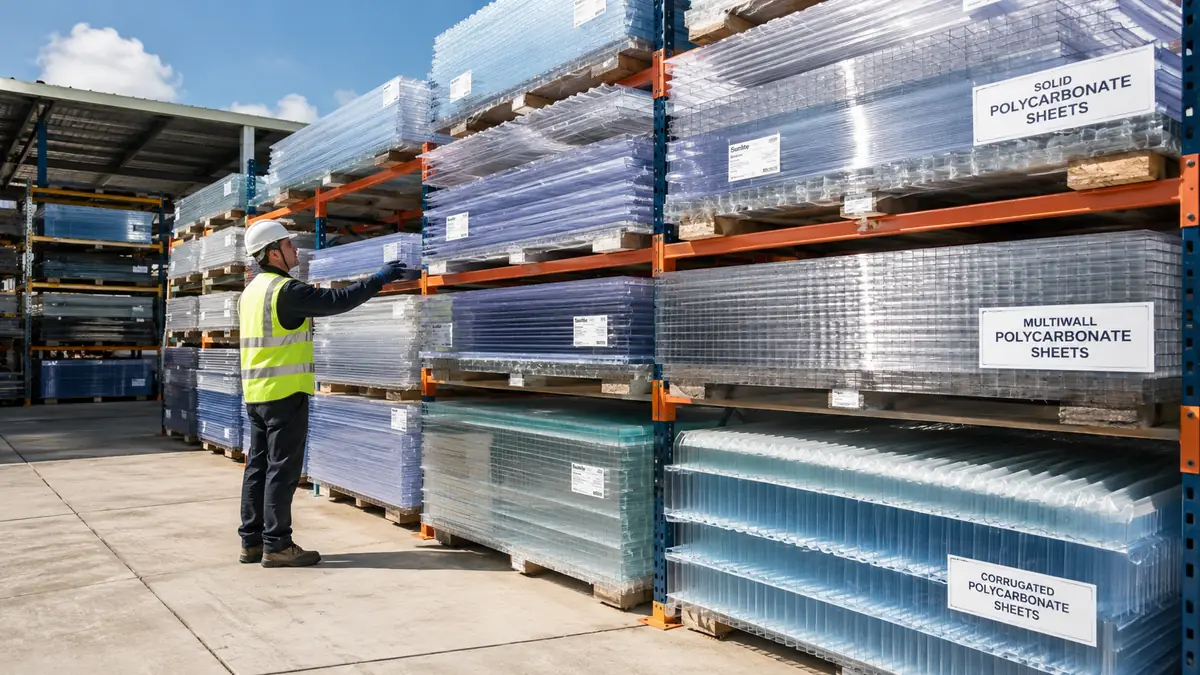

Dispatch from Bangalore (South) and Greater Noida (North/NCR), 3–5 business days standard — Delivery Policy. Sheets travel flat or in supplier packing with masking film on; leave the film on until fixed. UV documentation and span/support guidance are confirmed in writing at quotation, and returns follow the Refund & Return Policy. Supply-only unless stated otherwise.

Why buy polycarbonate roofing sheets from SAMAN

Because we install what we sell. Our cabins, canopies and prefab structures use these exact sheets, so the guidance above is not catalogue copy — it is the checklist our own teams follow. We will tell you when solid is worth the premium and when it is not, when a transparent roof will overheat your space and how to use strips instead, and we put UV grade, thickness, sheet count and every accessory on the quotation in the open. And we keep the family honest: no acrylic or transparent fibre sheets sold as "same thing" — polycarbonate is the transparent roof we stand behind. To see how it compares against metal and every other roof sheet family, start at the roofing sheet selection guide.
