Portable Cabin with Toilet

Name: Portable Cabin with Toilet
Brand: Saman Portable
SKU: SP-PCT-30-2024
Availability: InStock

Choose size

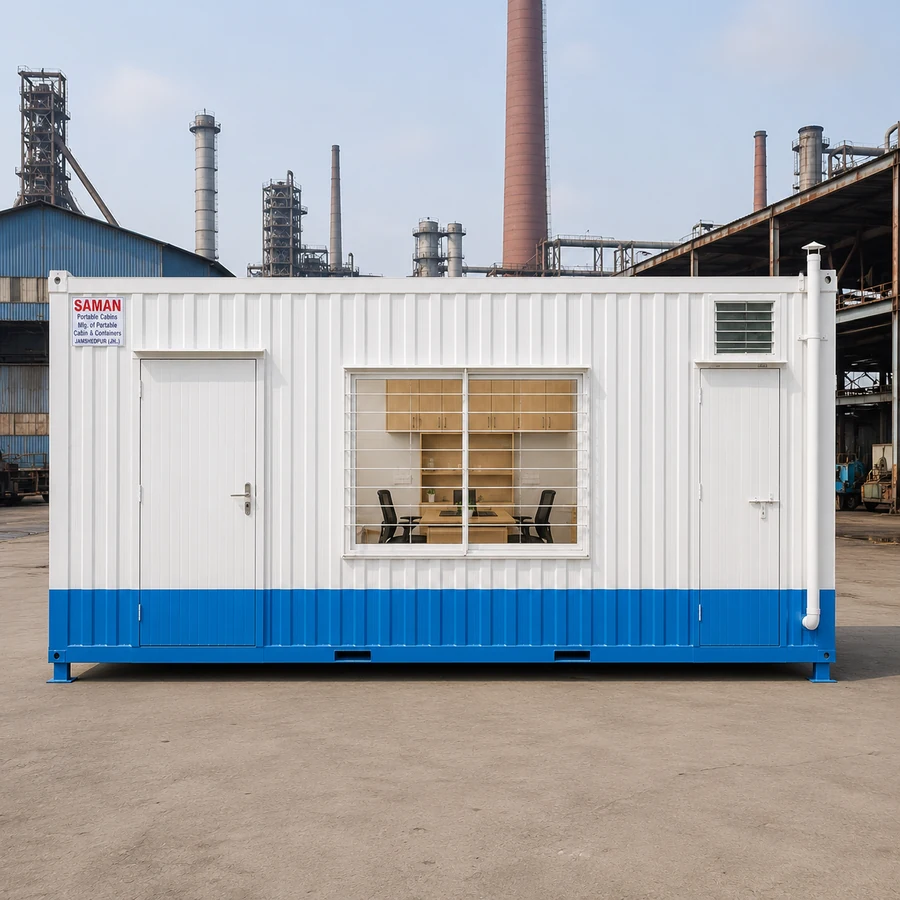

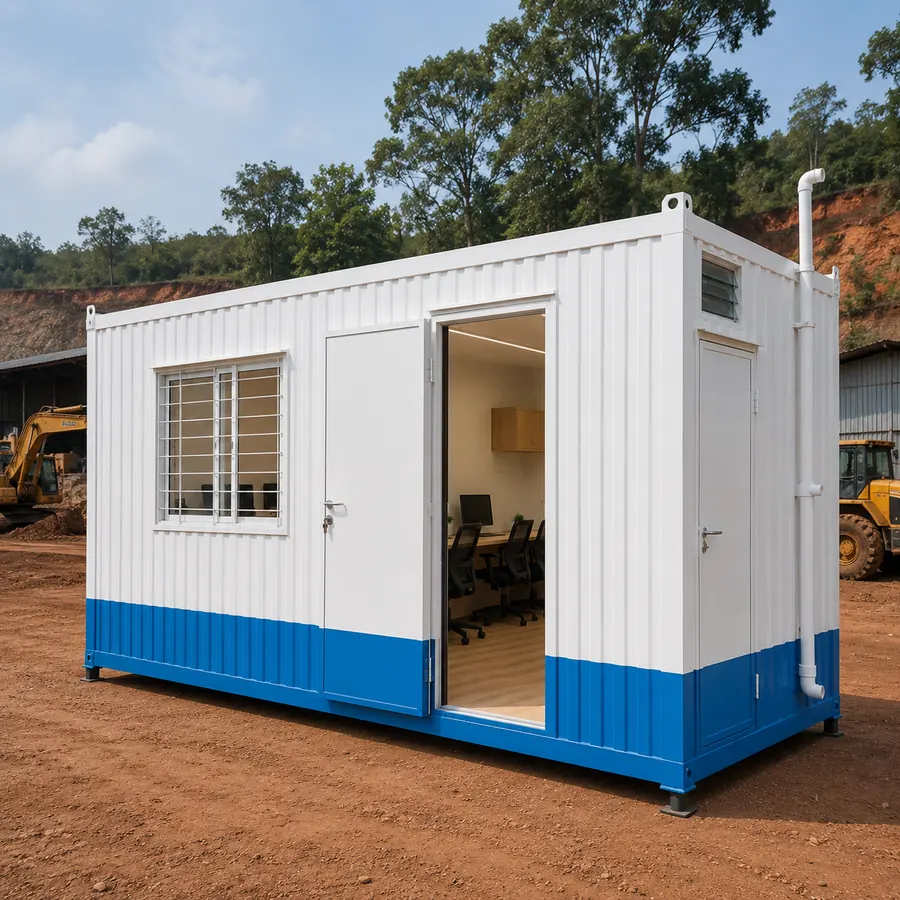

20×10 ft Portable Cabin with Toilet

₹3,00,000 + GST

₹3,54,000 incl. 18% GST

Prices are ex-GST for the base specification; 18% GST extra, plumbing and freight quoted separately.

The everyday size: a comfortable room with one partitioned washroom, room to work or stay, moved as one plumbed unit.

Size

20×10×8.5 ft

Material

MS or FRP · Insulated

Delivery

7–21 working days

Coverage

Bangalore · Delhi NCR

Brand

SAMAN Portable

Application

Room + one attached washroom

Custom sizes available · 500+ projects delivered · Factory-tested before dispatch

Product Information

SKU: SP-PCT-30-2024
Category: Portable Cabin

GST registered · ISO 9001:2015 certified manufacturer · 5-year structural and 1-year finishing warranty · Pan-India delivery

Explore every Portable Cabin with Toilet size & its applications

Nine standard sizes, one self-contained concept. A room with one attached washroom, priced ex-factory and delivered in 7–21 working days.

10×10 ft: the compact self-contained unit

The compact self-contained unit: a small room with one corner washroom partitioned off, delivered plumbed and ready. Inside 100 sq ft you get a private usable room plus its own WC and washbasin behind a separate door, nothing external to build or share. It suits a single staffed point that must stand alone: a gate, a farm, a kiosk posting. Choose site-connected plumbing where lines exist, or the self-contained option where they don’t. The washroom door, vent and light are standard, and the same 5–10 year structural warranty applies.

Security and gate duty rooms
Caretaker and watchman quarters
Small farm and orchard rooms
Ticket and kiosk duty points

10×10×8.5 ft100 sq ft₹1,65,000 + GST₹1,650/sq ft

20×8 ft: the slim room-plus-washroom for narrow plots

A slim room-plus-washroom that travels on a standard trailer: usable space at one end, the attached washroom at the other, keeping the working area clear of the wet zone. The 160 sq ft narrow body fits plot margins, toll lines and corridor sites where a 10 ft deep unit cannot go. Duty staff get a private room and their own sanitation in one liftable piece, with supply and waste points that disconnect cleanly for the next move. It is the size most often repeated in multiples along a route, one self-contained room per posting.

Highway and toll-plaza duty rooms
Narrow-plot staff rooms
Plantation and estate rooms
Weighbridge and checkpoint cabins

20×8×8.5 ft160 sq ft₹2,64,000 + GST₹1,650/sq ft

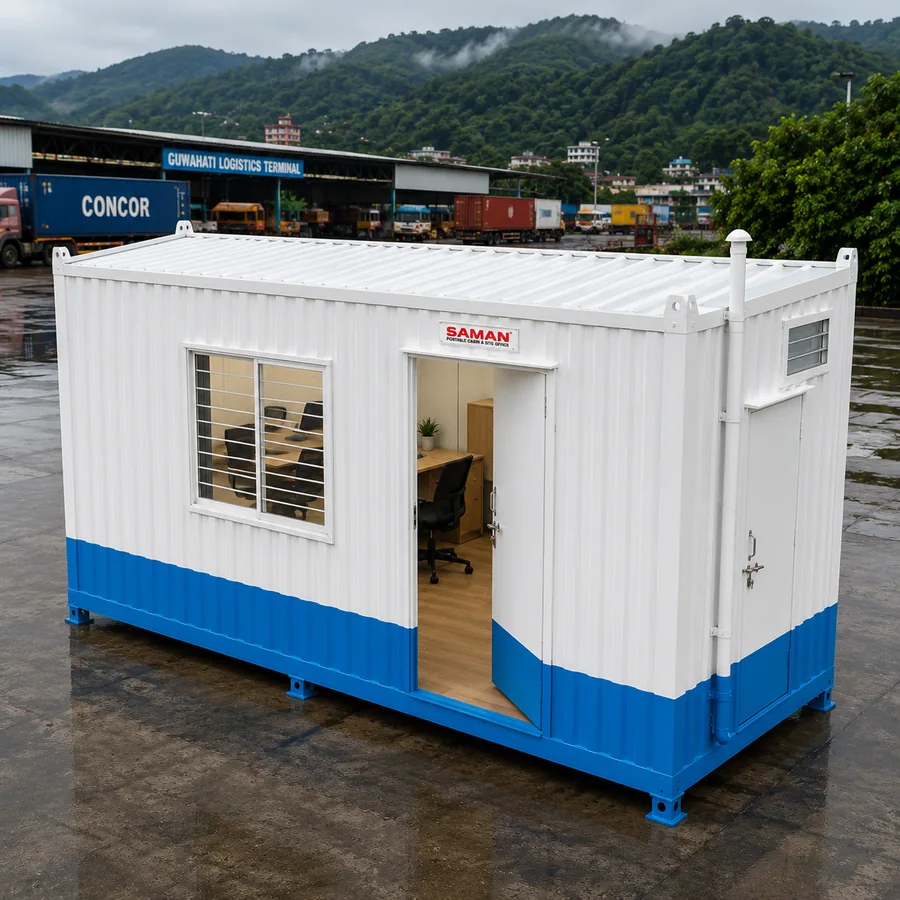

Portable cabin with toilet 20×10 ft, elevated view, relocatable room with one attached washroom by SAMAN Portable

20×10 ft: the everyday self-contained size

Our most-ordered with-toilet size: a comfortable 200 sq ft main room with one partitioned washroom, moved as a single plumbed unit. The room takes a bed and desk, or a consultation setup, while the washroom keeps its own door and vent. It is the default when one room must work and stay on its own: rural postings, project stays, caretaker residences. MS and FRP shells carry the same layout; the material changes durability, not the plan. Compare it against the 20×12 if the stay runs beyond a season, the wider room earns its keep in comfort.

Staffed rural clinic rooms
Project stay rooms
Sales-plot staff rooms
Caretaker residences

20×10×8.5 ft200 sq ft₹3,00,000 + GST₹1,500/sq ft

20×12 ft: extra depth for the long stay

The added width goes entirely to the living and working area. The washroom stays compact at one end while the 240 sq ft main room gains space for a bed and a desk together, or a consultation area with a waiting corner. It is the comfortable long-stay size: supervisors posted for a full project phase pick it over the 20×10 for exactly that extra room. One unit, one washroom, one lift when the posting ends. The washroom keeps the standard WC and washbasin fittings. Power, lighting and AC provision are fitted through the room zone, with the washroom on its own circuit point.

Supervisor stay quarters
Clinic room with waiting corner
Long-duration project rooms
Guest and visitor units

20×12×8.5 ft240 sq ft₹3,45,600 + GST₹1,440/sq ft

30×10 ft: the staffed rural deployment unit

A long 300 sq ft plan with a generous main room and the partitioned washroom at the far end. The common choice for a staffed rural or residential deployment that must relocate as one piece. The length lets the room zone into sleeping and working areas without touching the wet end. Outreach clinics and crew postings use it as a self-sufficient base: place it, connect or run self-contained, and it serves the full deployment. Because it moves as one piece, redeployment needs only transport and a prepared base, no rebuild at the new site.

Staffed rural postings
Crew stay rooms
Remote clinic and outreach rooms
Residential-phase site rooms

30×10×8.5 ft300 sq ft₹4,32,000 + GST₹1,440/sq ft

40×8 ft: the long, slim unit for linear sites

An extended usable space with sanitation attached, built to move on a 40 ft open trailer. The 320 sq ft slim body suits linear sites where units sit in a row along the work front. Each crew room keeping its own washroom instead of sharing a distant block. Pipeline, highway and corridor projects place several in line, and every unit remains individually liftable and reusable on the next stretch. Water and waste points sit at the washroom end, so row hookups stay short and serviceable. Each unit carries its own vent and light in the washroom, so a row stays serviceable without shared infrastructure.

Crew rest rooms on linear projects
Highway project stay units
Pipeline and corridor postings
Row-placed camp rooms

40×8×8.5 ft320 sq ft₹4,51,200 + GST₹1,410/sq ft

20×20 ft: the square open plan with washroom

Four hundred square feet on a square footprint. A roomy open area with one attached washroom, engineered to stay liftable and reusable across sites. The square plan gives a hall-like space a corridor unit can’t: multi-bed crew quarters, a family-style stay unit, or a training and rest room with private sanitation. Confirm site access for the 20 ft wide load early; after that it plans like a small building that still moves. The washroom sits at one corner, leaving an uninterrupted main floor the full width of the unit.

Family-style stay units
Larger staffed rooms
Training and rest rooms
Multi-bed crew quarters

20×20×8.5 ft400 sq ft₹5,64,000 + GST₹1,410/sq ft

40×10 ft: the full-length live-and-work unit

A spacious main room with its attached washroom, sized to travel as one piece on a 40 ft trailer. The 400 sq ft length zones into sleeping, working and storage areas while the single washroom serves the whole unit from one end. It is the remote-camp workhorse. Long postings where one unit must be both residence and workspace, delivered plumbed and lifted out complete when the camp closes. Partition positions for the sleeping and work zones are set on the approved drawing. The 40 ft length still lifts as one unit, so the whole quarters relocate in a single trailer movement.

Remote camp quarters
Long-posting stay rooms
Zoned live-and-work units
Project guest accommodation

40×10×8.5 ft400 sq ft₹5,64,000 + GST₹1,410/sq ft

40×12 ft: the largest single liftable unit

The most room-plus-washroom floor you can lift and reuse as one cabin: 480 sq ft that partitions into a multi-room layout on the approved drawing, with the single washroom serving the whole unit. Managers and in-charges posted long-term run it as a residence; large camps use it as the head unit. At ₹1,380 per square foot it carries the lowest rate on this ladder, beyond it, layouts become joined multi-module quotes. It is the practical ceiling of the one-unit concept. Everything above it is planned as a joined layout.

Manager and in-charge residences
Multi-room stay layouts
Large remote-camp units
Long-duration deployments

40×12×8.5 ft480 sq ft₹6,62,400 + GST₹1,380/sq ft

20×10 ft

₹3,00,000 + GST

Product Details

Comprehensive information about Portable Cabin with Toilet

Product Overview

Detailed information about Portable Cabin with Toilet

Portable Cabin with Toilet: Self-Contained Living and Sanitation, Delivered

A portable cabin with toilet from SAMAN is a single factory-built unit combining a living or working space with an integrated toilet facility: one delivery, one water connection, complete self-contained accommodation for rural, residential, and remote deployments across India.

A room and a washroom in one unit: built to move

A SAMAN portable cabin with toilet is a single factory-built cabin: a usable room at one end and one washroom partitioned off at the other, delivered plumbed and ready. It is one unit, not a toilet block. The room is the point, and the attached washroom means the space works on its own without a separate sanitation build. Because it is a portable cabin first, the whole unit lifts on its integrated MS lifting lugs, travels on a flatbed and re-sites at the next location, sanitation included.

MS or FRP: choosing the material

The first choice is the material, because it decides how long the unit stays and how hard the site is. MS (mild steel, corrugated) is the durable, relocatable standard. A welded steel shell built for repeated lifts and long service. FRP (smooth fibre-reinforced panel) is lighter and easy to clean, suited to hygiene-sensitive or shorter-duration use. Both carry the same single-washroom layout; the material changes the shell, not the concept.

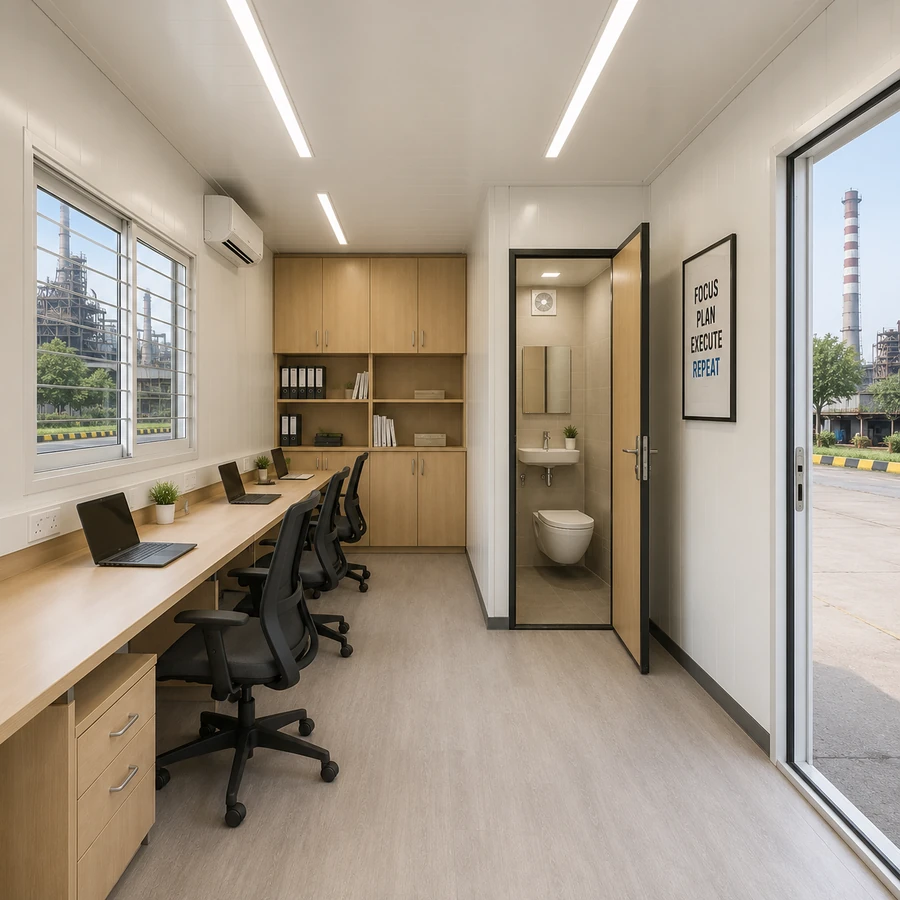

How the washroom fits: one partitioned washroom at one end

The washroom is created by a partition wall inside the shell, giving a private WC and washbasin at one end and the main room at the other. It is a single washroom for the unit, sized on the approved drawing so the main room stays usable. This is what separates a portable cabin with toilet from a standalone toilet or a multi-door toilet block: here, the sanitation serves the room it is attached to.

Plumbing: site-connected or self-contained

Choose how the washroom is served. Site-connected ties into an existing water and drainage point. Bio-digester / self-contained lets the unit run where there is no municipal water or sewer, the tank and system are built in. Either way, the connections are designed to be disconnected and reconnected, so the unit can be moved without abandoning its plumbing.

Where a room-with-washroom is the right unit

The self-contained layout suits deployments where a room needs its own sanitation and may later move: a staffed rural room or clinic space, a residential or construction-phase room during a build, a remote site room where crews stay, or an event room that needs a private washroom. In each case it is a cabin with an attached washroom, placed, used, and re-sited as one unit, not a public toilet installation.

Moving a plumbed unit: the practical checklist

This is where the "portable" in portable cabin with toilet earns its place. Before a move: isolate and drain the water supply, safely disconnect the waste line (or pump out and seal the bio-digester per its instructions), and cap the service points. Lift, transport and re-level on a prepared base at the new site, then reconnect water and waste and check the WC, basin and vent. Planning base and access at both ends keeps a plumbed unit reusable for years.

Price: what the figure includes

Prices are ex-GST for the base specification of each size; 18% GST is added, and plumbing beyond the standard package and freight to your site are quoted separately. What moves your final number: size, material (MS or FRP), plumbing type (site-connected or bio-digester), interior fit-out and finish, and delivery distance from our Bangalore (South) or Greater Noida (North) unit. Send your size, material, plumbing choice and location for an itemised quotation.

Delivery and installation across India

Every unit is factory-built and delivered ready to use, dispatched from Bangalore for South India and Greater Noida for the North. Our team offloads and positions the unit on your prepared base and completes the site connection; most units are usable shortly after they land. When you relocate later, we can help arrange the transport.

How this differs from a standalone toilet and our other cabins

If you need sanitation only, a standalone toilet unit rather than a room with an attached washroom, see our standalone site sanitation units. If you need a general relocatable room or office with no washroom, see our move-and-reuse cabin range. This page is the single unit that combines a usable room and one attached washroom, and moves as one.

Why buy from SAMAN

We manufacture in-house at our own Bangalore and Greater Noida units: you deal with the maker, not a reseller. SAMAN POS India Private Limited is ISO 9001:2015, ISO 14001:2015 and ISO 45001:2018 certified, NSIC-enlisted, DPIIT (Startup India) recognised, Udyam-registered and GST-registered, with 500+ projects delivered across India. Structural warranty is 5–10 years, confirmed at quotation.

Contacts: South, +91 88616 22859 / sales@samanportable.com · North, +91 87960 39938 / ncr@samanportable.com

How is the washroom arranged inside a portable cabin with toilet?

One washroom is partitioned off at one end of the cabin, with its own door, a WC and washbasin, and a vent. The rest of the unit stays as usable room. It is a single attached washroom for the unit, sized on the approved drawing, not a block of cubicles.

Can it run where there is no municipal water or drainage?

Yes, with the bio-digester / self-contained option: the tank and system are built in, so the unit works off-grid. Where a mains point exists, the site-connected option ties into it instead.

Should I choose MS or FRP?

MS (corrugated steel) is the durable, relocatable standard for longer service and repeated moves; FRP (smooth panel) is lighter and easy to clean for hygiene-sensitive or shorter-duration use. Both use the same single-washroom layout.

How is a plumbed unit disconnected and moved without rebuilding it?

Isolate and drain the water supply, disconnect the waste line (or pump out and seal the bio-digester), cap the service points, then lift the whole unit onto a flatbed. At the new site it is re-levelled on a prepared base and the water and waste are reconnected.

What base and access do I need for delivery and a later move?

A flat, level, load-bearing surface (compacted ground, concrete apron or plinth), plus room for a delivery truck and, where used, a crane. Confirm route width and clearance for both placement and future relocation.

Can two units be placed together for more room?

Yes. Units can be set side by side to add room area while each keeps its own attached washroom and still lifts and moves individually; the layout is planned on the approved drawing.

Technical Specifications

Detailed technical information and features

A portable cabin with toilet is the same steel cabin platform with one attached washroom partitioned at one end. The specification below is the shared SAMAN standard; the with-toilet build adds a partition wall, a compact washroom with its own door and vent, and the supply/waste points, all inside the single relocatable shell: one unit, room plus washroom, that still lifts and moves as a portable cabin (it is not a multi-cubicle toilet block).

Element	Specification
Primary base frame	100×50×3 mm MS C-channel (ISI-standard or approved equivalent), welded
Floor framing	MS base + cross-member grid supporting 18 mm Bison / cement-fibre board
Top frame	50×50×1.6 mm MS square-pipe perimeter
Roof stiffeners	50×50×1.2 mm MS square-pipe + 50×40/40×40/25×25 mm secondary
Corner / wall posts	50×50×2 mm MS square-pipe (or approved 60×60 mm MS angle)
Exterior wall (MS)	1.2 mm specially corrugated MS sheet
Alternative shell (FRP)	Smooth fibre-reinforced polymer panel (FRP variant); construction to approved drawing
Roof	1.4 mm corrugated MS sheet
Interior wall	8 mm pre-laminated MDF with aluminium H-joint sections
Ceiling	8 mm pre-laminated MDF
Floor board / finish	18 mm Bison panel + 1.3 mm vinyl flooring (washroom floor sealed/sloped to drain)
Wall insulation	25 mm glass wool or 12 mm heatlon
Roof insulation	50 mm glass wool, ~42 kg/m³
Washroom partition	Internal partition wall creating one washroom at one end; layout to approved drawing
Washroom fittings	WC and washbasin with tap; washroom door and wall/roof vent; to approved drawing
Plumbing	Site-connected (water + drainage points) OR bio-digester / self-contained tank system
Door	7×3 ft externally opening MS-framed, 30×30 mm MS tubular (main room)
Windows	Two-track powder-coated aluminium sliding, 4 mm glass
Electrical	LED lights, modular switches, 6A/16A sockets, fan + AC provision; washroom light + exhaust point
Finish	Anti-rust enamel (MS) / gel-coat (FRP), approved colour
Warranty	5–10 years, confirmed at quotation

Shipping & Delivery

Delivery information and warranty details

Every SAMAN cabin is delivered factory-direct from our Bengaluru (South) or Greater Noida (North) unit on an open trailer, with delivery and installation across South and North India in 7–21 working days. Cabins up to 20 ft travel on a 20 ft open trailer; 30 ft and 40 ft cabins travel on a 40 ft open trailer. Unloading by crane or manual placement is arranged based on your site access and confirmed at quotation.

Free delivery: within Bangalore city (South zone) · Delhi NCR: Ghaziabad, Gurugram, Faridabad, Noida and Greater Noida (North zone).

20 ft open trailer · freight by distance (both zones)

Distance	Freight (Rs)
100–150 km	25,000–30,000
150–200 km	30,000–35,000
200–250 km	35,000–40,000
250–300 km	40,000–45,000
300–350 km	45,000–50,000
350–400 km	50,000–55,000
400–450 km	55,000–60,000
450–500 km	60,000–65,000
500–550 km	65,000–70,000
550–600 km	70,000–75,000
600–650 km	75,000–80,000
650–700 km	80,000–85,000
700–750 km	85,000–90,000
750–800 km	90,000–95,000
800–850 km	95,000–100,000
850–900 km	100,000–105,000
900–950 km	105,000–110,000
950–1,000 km	110,000–115,000

40 ft open trailer · freight by distance (both zones)

Distance	Freight (Rs)
100–150 km	30,000–35,000
150–200 km	35,000–40,000
200–250 km	40,000–45,000
250–300 km	45,000–50,000
300–350 km	50,000–55,000
350–400 km	55,000–60,000
400–450 km	60,000–65,000
450–500 km	65,000–70,000
500–550 km	70,000–75,000
550–600 km	75,000–80,000
600–650 km	80,000–85,000
650–700 km	85,000–90,000
700–750 km	90,000–95,000
750–800 km	95,000–100,000
800–850 km	100,000–105,000
850–900 km	110,000–115,000
900–950 km	115,000–120,000
950–1,000 km	120,000–125,000

Typical destinations from our Bengaluru unit (South zone)

approximate road distance, find your freight band in the tables above; final charge confirmed at quotation

City	Approx. distance	Freight band
Mysuru	~145 km	100–150 km
Salem	~215 km	200–250 km
Tirupati	~250 km	250–300 km
Mangaluru	~350 km	300–350 km
Chennai	~350 km	300–350 km
Coimbatore	~365 km	350–400 km
Hubballi	~410 km	400–450 km
Madurai	~435 km	400–450 km
Kochi	~550 km	500–550 km
Goa (Panaji)	~560 km	550–600 km
Hyderabad	~570 km	550–600 km
Vijayawada	~630 km	600–650 km

Typical destinations from our Greater Noida unit (North zone)

approximate road distance, find your freight band in the tables above; final charge confirmed at quotation

City	Approx. distance	Freight band
Agra	~165 km	150–200 km
Haridwar	~230 km	200–250 km
Jaipur	~255 km	250–300 km
Dehradun	~285 km	250–300 km
Chandigarh	~290 km	250–300 km
Gwalior	~330 km	300–350 km
Ludhiana	~390 km	350–400 km
Kanpur	~440 km	400–450 km
Lucknow	~470 km	450–500 km
Amritsar	~490 km	450–500 km
Bhopal	~600 km	550–600 km
Varanasi	~760 km	750–800 km

Distances beyond 1,000 km are quoted at booking. ODC (over-dimensional cargo) charges depend on the state. All freight figures are tentative, the final charge is confirmed once your delivery location and order are confirmed, and may vary slightly with the route and return-vehicle availability.

Warranty & Support

Structural warranty 5–10 years, confirmed at quotation. Base specification price: customisations quoted separately. After-sales support and spare parts available from our Bengaluru and Greater Noida units.
