Mini Porta Cabin
Choose size
10x10 ft Mini Porta Cabin
₹1,32,000 + GST₹1,55,760 incl. 18% GST
The classic mini cabin: guard post, gate office or ticket counter, finished and quick to place on the tightest site.
Custom sizes available · 500+ projects delivered · Factory-tested before dispatch
Product Information
- SKU
- SP-MNPC-10x10
- Category
- Porta Cabins
GST registered · ISO 9001:2015 certified manufacturer · 5-year structural and 1-year finishing warranty · Pan-India delivery
Why choose the Mini Porta Cabin
The compact end of our newly fabricated range, covering the four smallest sizes from a one-person duty post to a four-person room. It keeps the value specification: a 0.8–1.0 mm exterior with 6 mm lining, and adds a second window and separate socket circuit once the cabin passes 200 sq ft. Choose it for gate posts, kiosks and small teams; the Low Cost Porta Cabin carries the same grade in the larger sizes.
Need a fitted workspace rather than a duty room? The Portacabin Office adds workstations, storage and glazing.
Explore every Mini Porta Cabin size and where it works
Four compact sizes, from a one-person duty post to a four-person room. Larger sizes are on the Low Cost Porta Cabin page.

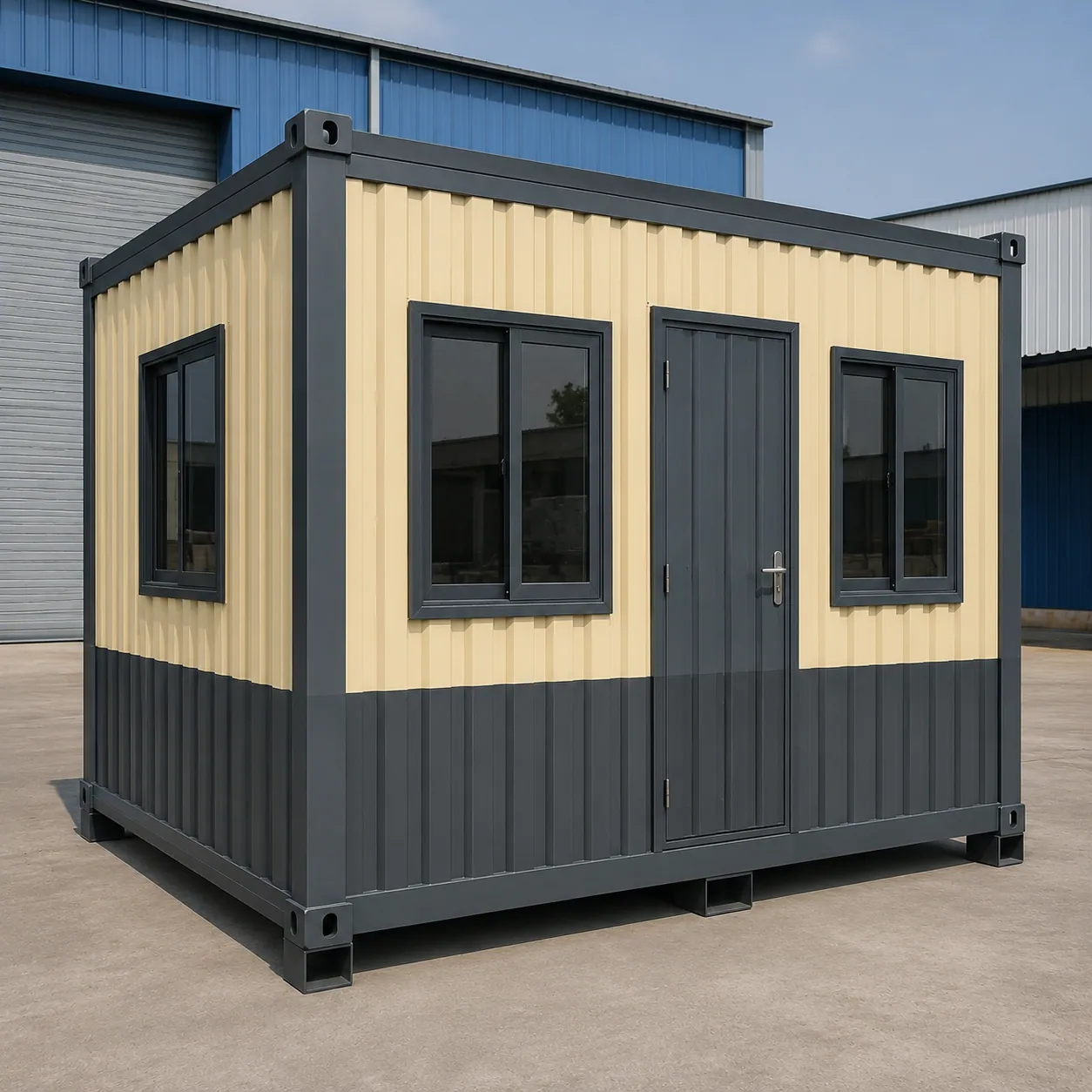

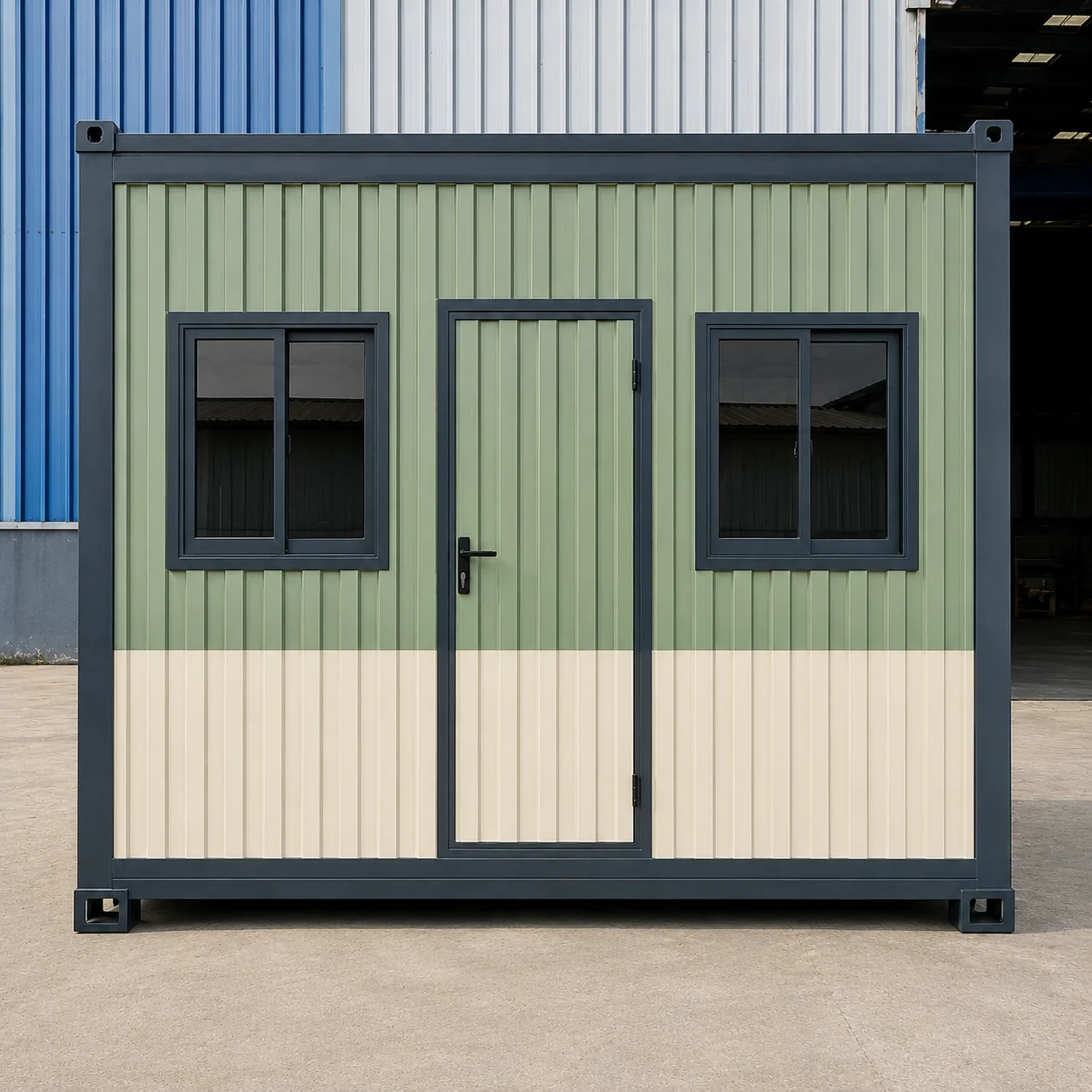

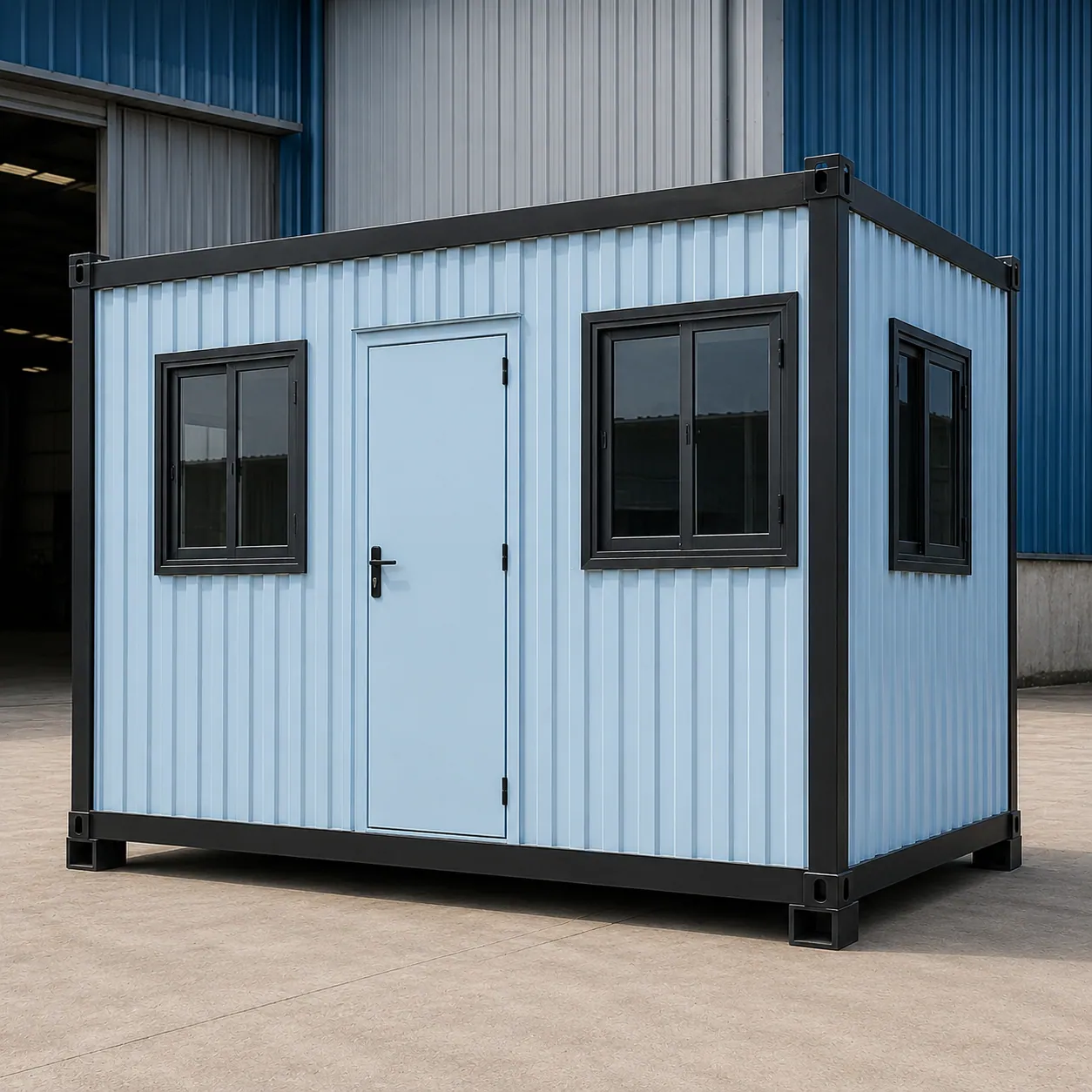

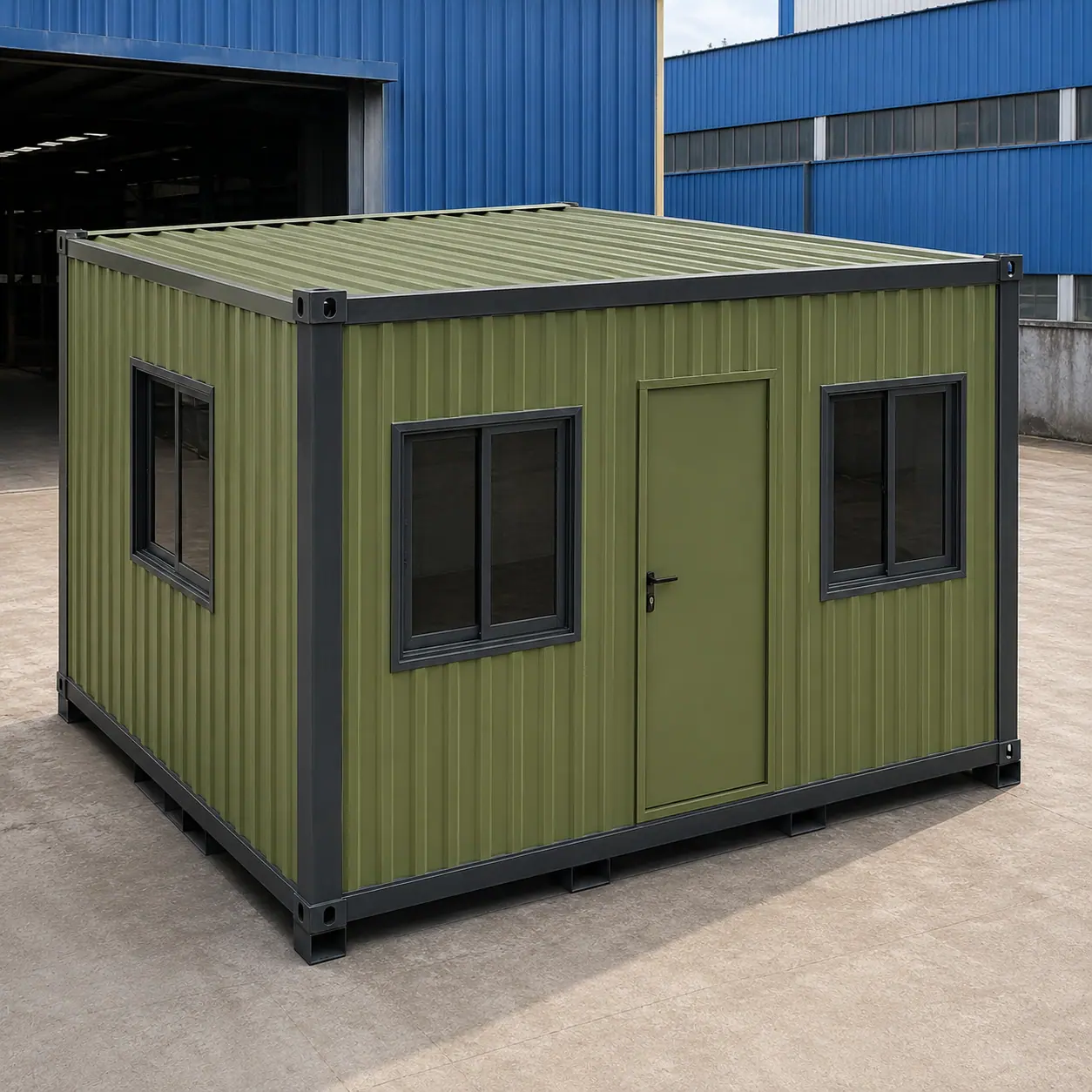

10×10 ft: the single-occupancy duty cabin
One hundred square feet built for one person on duty, and the smallest unit we fabricate. The value specification runs throughout: a 0.8–1.0 mm corrugated exterior over the same welded MS frame, 6 mm pre-laminated lining, 12 mm heatlon insulation and an 18 mm BWP plywood floor under 1.5 mm vinyl. One sliding window and a single lighting and socket circuit are sized for one occupant, which is why it costs less to run than any other cabin here. Gate posts, watchman points and weighbridge kiosks take this size more than any other, and it lifts onto a pickup without a crane.
Uses
- Gate and entry posts
- Watchman duty points
- Weighbridge kiosks
- Single-person stores
10x10 ft
₹1,32,000 + GST
Product Details
Comprehensive information about Mini Porta Cabin
Product Overview
Detailed information about Mini Porta Cabin
Mini Porta Cabin: The Compact End of the SAMAN Range
A mini porta cabin is the smallest practical footprint we build for guard posts, gate offices, ticket counters and tight-access sites. A fully finished MS cabin where a standard site office is simply too large. It uses the same welded IS 2062 mild-steel frame and finished interior as our larger cabins, sized down to what a compact deployment actually needs, starting at 10×10 ft.
Which Size for Which Application: the Compact End of the Range
The right mini cabin comes from the application, not a preference. A 10×10 ft (100 sq ft) is the workhorse: a seated guard post with a desk, a visitor position and turn-room, a weighbridge cabin, a ticket or toll counter with a service window. A 20×8 ft slim unit suits boundary-wall and road-margin placements where depth is the constraint: one long, narrow, fully usable room. A 20×10 ft is the compact site office: one to four occupants with desks and storage, still quick to place and relocate. Every size above that keeps the same compact character with more floor. The full ladder runs to 40×12 ft for buyers who want mini-range simplicity at scale. If your requirement is genuinely smaller than 10×10 ft, a standing-only booth at a gate or kiosk-scale unit, that is a different product class: see our security cabins range, which is purpose-built at booth scale. The mini porta cabin range starts where a working desk starts: 10×10 ft.
MS Corrugated Steel at Compact Scale: Why It Matters at a Gate
A compact cabin at a building entrance or estate gate is touched, brushed and knocked every day of its service life, and that is why the material decision matters most at exactly this scale. Three points make IS 2062 MS corrugated steel the right skin for a permanent gate cabin. First, impact: 18-gauge corrugated MS deflects and dents at contact, a barrier arm, a brushing bumper, a door pushed hard, where thin FRP cracks, and a cracked panel on a customer-facing gate cabin looks abandoned within a couple of years. Second, repairability: MS wall panels are small, local sections a fabricator can cut out and replace individually in hours at minor cost; a cracked FRP shell at this scale cannot be patched without specialist work. Third, lifespan: IS 2062 MS with factory surface treatment and routine repainting serves 20+ years at a permanently manned, high-contact post. For the full steel-grade, frame and treatment detail, see our MS porta cabin page.

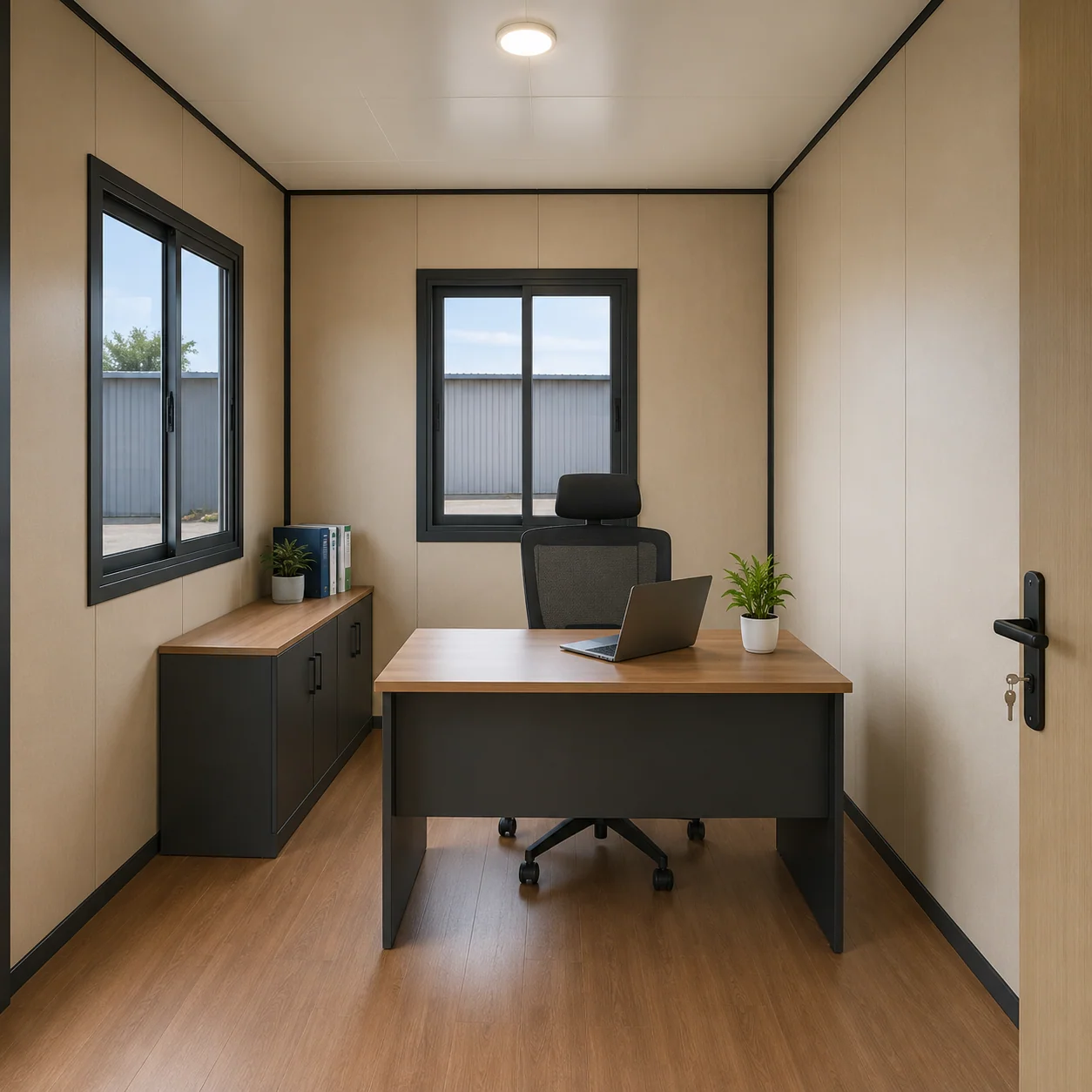

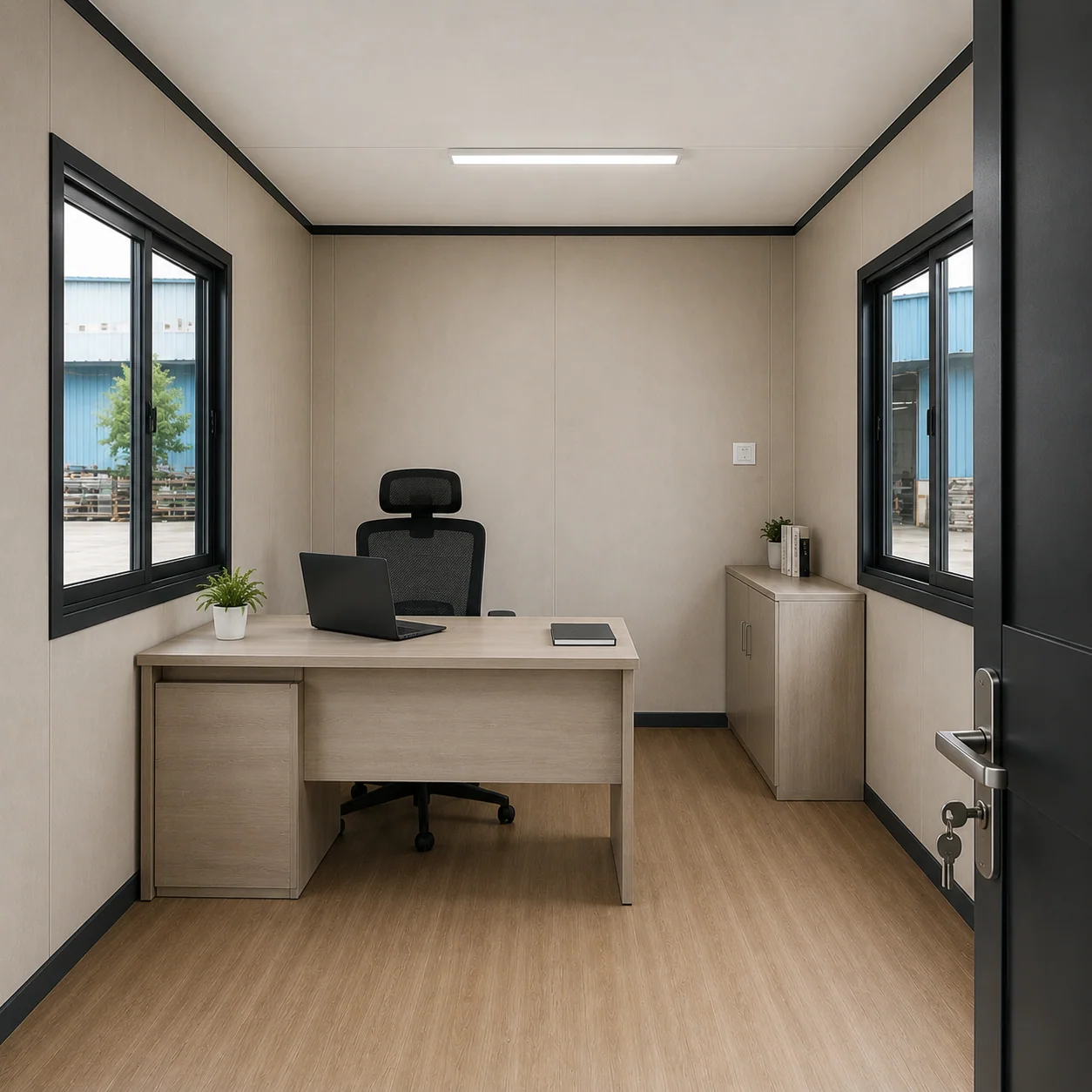

Standard Fitout in a 10×10 Mini Cabin: What Fits
Every SAMAN mini cabin leaves the factory finished: insulated walls and roof under the corrugated MS shell, pre-laminated lined interior, vinyl-finished floor, one aluminium sliding window with safety grill on each long face, a lockable MS entry door, LED lighting, socket points on a mini distribution board, and an AC provision. In a 10×10 the practical layout is one standard desk, two chairs, a register shelf and a monitor or handset, a full working post, not a shell. Nothing about the compact size reduces the specification: the frame, insulation and finish match our largest cabins; you are simply not paying for floor you don't need.
When to Step Up: and When Not To
Choose 10×10 while the cabin serves one seated occupant plus a visitor. Move to 20×8 when the site gives you length but not depth. Move to 20×10 when a second permanent workstation arrives. If the cabin's real job is a working office for a small team rather than a post, compare the small portacabin, the compact OFFICE end of the range, before sizing up further. And if the deciding factor is budget alone, the value-spec compact cabin carries this same 10×10 footprint at the keenest finish tier. Every mini cabin is delivered and installed across South and North India, typically in 7–21 working days, with welded lifting lugs for relocation as your gate, site or season moves. Explore SAMAN's porta cabin range for the complete ladder, or send your application and we will confirm the right compact size at quotation.
Frequently Asked Questions
What is a mini porta cabin used for?
Guard posts, gate offices, toll/ticket counters, weighbridge cabins and tight-access sites, anywhere a full site office is too large. Fully finished MS cabin, quick to place and relocate.
What does a mini porta cabin cost?
From ₹1,34,000 (10×10) ex-GST, HSN 9406, 18% GST extra. It's the same build as our larger cabins, sized down, you pay for less floor, not lower quality.
How is a mini porta cabin different from a security cabin?
A mini porta cabin is a compact general-purpose cabin; for purpose-built guard booths see our security cabins. Many buyers use a mini cabin as a guard post.
Can it be relocated?
Yes. Welded lifting lugs; the compact MS unit is built to be lifted and re-sited.
Sizes and delivery?
Compact sizes from 10×10 ft; delivered across South & North India in 7–21 working days.
Technical Specifications
Detailed technical information and features
Steel Structure
| Component | Detail |
|---|---|
| Bottom frame | 100×50×3 mm MS C-channel primary base frame, ISI-standard or approved equivalent, fabricated as the load-bearing chassis. |
| Bottom stiffeners | 100×50 mm C-channels, 50×50 mm MS angles, 75×40 mm channels and approved square-pipe supports, typically coordinated at about 4 ft intervals to the final floor load and lifting design. |
| Floor frame | MS base and cross-member grid supporting an 18 mm Bison/cement-fibre floor board fixed with approved self-tapping fasteners; spacing follows the final drawing and design load. |
| Top frame | 50×50×1.6 mm MS square-pipe top perimeter frame of approved make or equivalent. |
| Roof stiffeners | 50×50×1.2 mm MS square-pipe roof stiffeners with 50×40, 40×40, 50×25 or 25×25 mm secondary members where required by span, ceiling support and drainage slope. |
| Corner posts / walls | 50×50×2 mm MS square-pipe corner and wall posts or approved 60×60 mm MS-angle alternative, with reinforced door and window openings and an approximately 60 mm wall cavity. |
| Lifting / handling | Designed MS lifting hooks or lugs matched to the completed unit weight; handle only by the approved lifting and support-point drawing. |
| Welding & fabrication | Welded MS fabrication with cleaned joints, safe edges, dimensional inspection and coating touch-up before panel closure and dispatch. |
Walls, Roof, Floor & Insulation
| Component | Detail |
|---|---|
| Exterior walls | 0.8–1.0 mm corrugated MS sheet |
| Roof | 1.2 mm corrugated MS sheet |
| Interior walls | 6 mm pre-laminated plywood/board |
| Ceiling | 6 mm pre-laminated ceiling board |
| Floor base | 18 mm BWP plywood |
| Floor finish | 1.5 mm vinyl flooring |
| Wall insulation | 12 mm heatlon |
| Roof insulation | 25 mm glass wool |
| Decorative / external finish | Standard anti-rust enamel exterior finish in an approved colour combination. |
| Fasteners & sealing | Security grill, insect mesh, guard, louver or protection selected only where the approved use and opening schedule requires it. |
Doors, Windows, Electrical & Services
| Component | Detail |
|---|---|
| Main door / service door | 32 mm waterproof flush door with MS frame and standard hardware |
| Windows / service opening | Powder-coated aluminium sliding windows with 3 mm glass |
| Grills / mosquito mesh | Security grill, insect mesh, guard, louver or protection selected only where the approved use and opening schedule requires it. |
| Electrical wiring | Concealed PVC-insulated copper wiring, typically 1.5 sq.mm lighting, 2.5 sq.mm sockets and 4 sq.mm higher-load or AC circuits, subject to the final load schedule. |
| Electrical protection | Distribution board with MCB/RCCB protection, earthing and segregation of lighting, socket, wet-area and AC circuits according to the approved electrical drawing. |
| Electrical fittings | Portable Cabin electrical package with guard lighting, fan, socket, CCTV/access-control/data conduits, intercom and external-light provision as shown on the security-services drawing. |
| Ventilation / AC | Natural cross ventilation with fan, exhaust and AC provision as required. |
| Plumbing / sanitary | Not included unless shown in the approved scope. |
| Layout / configuration | Open single-room layout with furniture and partitions finalized by approved drawing. |
| Painting / coating | One red-oxide primer coat followed by two compatible anti-rust enamel coats on prepared MS surfaces; project exposure may require an upgraded coating system. |
| Quality checks | Pre-dispatch checks cover dimensions, member and sheet identification, welds, coating, roof drainage, weather sealing, doors, windows, electrical continuity and functional operation. |
| Warranty | Warranty period and exclusions are confirmed only in the final quotation; relocation damage, misuse, site services and unapproved alterations remain outside the agreed scope unless stated otherwise. |
Shipping & Delivery
Delivery information and warranty details
Every SAMAN cabin is delivered factory-direct from our Bengaluru (South) or Greater Noida (North) unit on an open trailer, with delivery and installation across South and North India in 7–21 working days. Cabins up to 20 ft travel on a 20 ft open trailer; 30 ft and 40 ft cabins travel on a 40 ft open trailer. Unloading by crane or manual placement is arranged based on your site access and confirmed at quotation.
Free delivery: within Bangalore city (South zone) · Delhi NCR: Ghaziabad, Gurugram, Faridabad, Noida and Greater Noida (North zone).
20 ft open trailer · freight by distance (both zones)
| Distance | Freight (Rs) |
|---|---|
| 100–150 km | 25,000–30,000 |
| 150–200 km | 30,000–35,000 |
| 200–250 km | 35,000–40,000 |
| 250–300 km | 40,000–45,000 |
| 300–350 km | 45,000–50,000 |
| 350–400 km | 50,000–55,000 |
| 400–450 km | 55,000–60,000 |
| 450–500 km | 60,000–65,000 |
| 500–550 km | 65,000–70,000 |
| 550–600 km | 70,000–75,000 |
| 600–650 km | 75,000–80,000 |
| 650–700 km | 80,000–85,000 |
| 700–750 km | 85,000–90,000 |
| 750–800 km | 90,000–95,000 |
| 800–850 km | 95,000–100,000 |
| 850–900 km | 100,000–105,000 |
| 900–950 km | 105,000–110,000 |
| 950–1,000 km | 110,000–115,000 |
40 ft open trailer · freight by distance (both zones)
| Distance | Freight (Rs) |
|---|---|
| 100–150 km | 30,000–35,000 |
| 150–200 km | 35,000–40,000 |
| 200–250 km | 40,000–45,000 |
| 250–300 km | 45,000–50,000 |
| 300–350 km | 50,000–55,000 |
| 350–400 km | 55,000–60,000 |
| 400–450 km | 60,000–65,000 |
| 450–500 km | 65,000–70,000 |
| 500–550 km | 70,000–75,000 |
| 550–600 km | 75,000–80,000 |
| 600–650 km | 80,000–85,000 |
| 650–700 km | 85,000–90,000 |
| 700–750 km | 90,000–95,000 |
| 750–800 km | 95,000–100,000 |
| 800–850 km | 100,000–105,000 |
| 850–900 km | 110,000–115,000 |
| 900–950 km | 115,000–120,000 |
| 950–1,000 km | 120,000–125,000 |
Typical destinations from our Bengaluru unit (South zone)
approximate road distance, find your freight band in the tables above; final charge confirmed at quotation
| City | Approx. distance | Freight band |
|---|---|---|
| Mysuru | ~145 km | 100–150 km |
| Salem | ~215 km | 200–250 km |
| Tirupati | ~250 km | 250–300 km |
| Mangaluru | ~350 km | 300–350 km |
| Chennai | ~350 km | 300–350 km |
| Coimbatore | ~365 km | 350–400 km |
| Hubballi | ~410 km | 400–450 km |
| Madurai | ~435 km | 400–450 km |
| Kochi | ~550 km | 500–550 km |
| Goa (Panaji) | ~560 km | 550–600 km |
| Hyderabad | ~570 km | 550–600 km |
| Vijayawada | ~630 km | 600–650 km |
Typical destinations from our Greater Noida unit (North zone)
approximate road distance, find your freight band in the tables above; final charge confirmed at quotation
| City | Approx. distance | Freight band |
|---|---|---|
| Agra | ~165 km | 150–200 km |
| Haridwar | ~230 km | 200–250 km |
| Jaipur | ~255 km | 250–300 km |
| Dehradun | ~285 km | 250–300 km |
| Chandigarh | ~290 km | 250–300 km |
| Gwalior | ~330 km | 300–350 km |
| Ludhiana | ~390 km | 350–400 km |
| Kanpur | ~440 km | 400–450 km |
| Lucknow | ~470 km | 450–500 km |
| Amritsar | ~490 km | 450–500 km |
| Bhopal | ~600 km | 550–600 km |
| Varanasi | ~760 km | 750–800 km |
Distances beyond 1,000 km are quoted at booking. ODC (over-dimensional cargo) charges depend on the state. All freight figures are tentative, the final charge is confirmed once your delivery location and order are confirmed, and may vary slightly with the route and return-vehicle availability.
Warranty & Support
Structural warranty 5–10 years, confirmed at quotation. Base specification price: customisations quoted separately. After-sales support and spare parts available from our Bengaluru and Greater Noida units.
