Labor Sheds
Choose size
120x24 ft G+1 Labor Sheds
₹39,39,840 + GST₹46,49,011 incl. 18% GST
Base specification price, customisations quoted separately.
A labour shed is the open-hall version of SAMAN worker housing: one clear sleeping hall per floor with central aisles, built as a light portal-frame steel building with PPGI cladding and high-level ventilation. It suits contractors who need the highest bed count per rupee and manage the hall as one space. The hall comes in six sizes, 60x24 ft G+1 up to 120x24 ft G+2, sleeping 58 to 216 workers a building. The hall is priced ex-factory on one per-square-foot rate, delivered in 7 to 21 working days with zoned lighting and emergency circuits fitted.
Custom sizes available · 500+ projects delivered · Factory-tested before dispatch
Product Information
- SKU
- CC-50-LS-2024
GST registered · ISO 9001:2015 certified manufacturer · 5-year structural and 1-year finishing warranty · Pan-India delivery
Why choose the shed over the room block
The shed puts every bed into one open hall per floor, which is the cheapest way to house a large crew and by far the easiest arrangement to supervise as a single space. Fire exits, zoned lighting circuits and high-level ventilation are all sized for open-hall occupancy rather than for individual rooms. Choose it when bed count per rupee matters more than room privacy.
Crews that need lockable individual rooms are better served by the Labor Hutments room block, and the full worker housing range shows where each build fits.
Every labour shed size, and the crew each hall sleeps

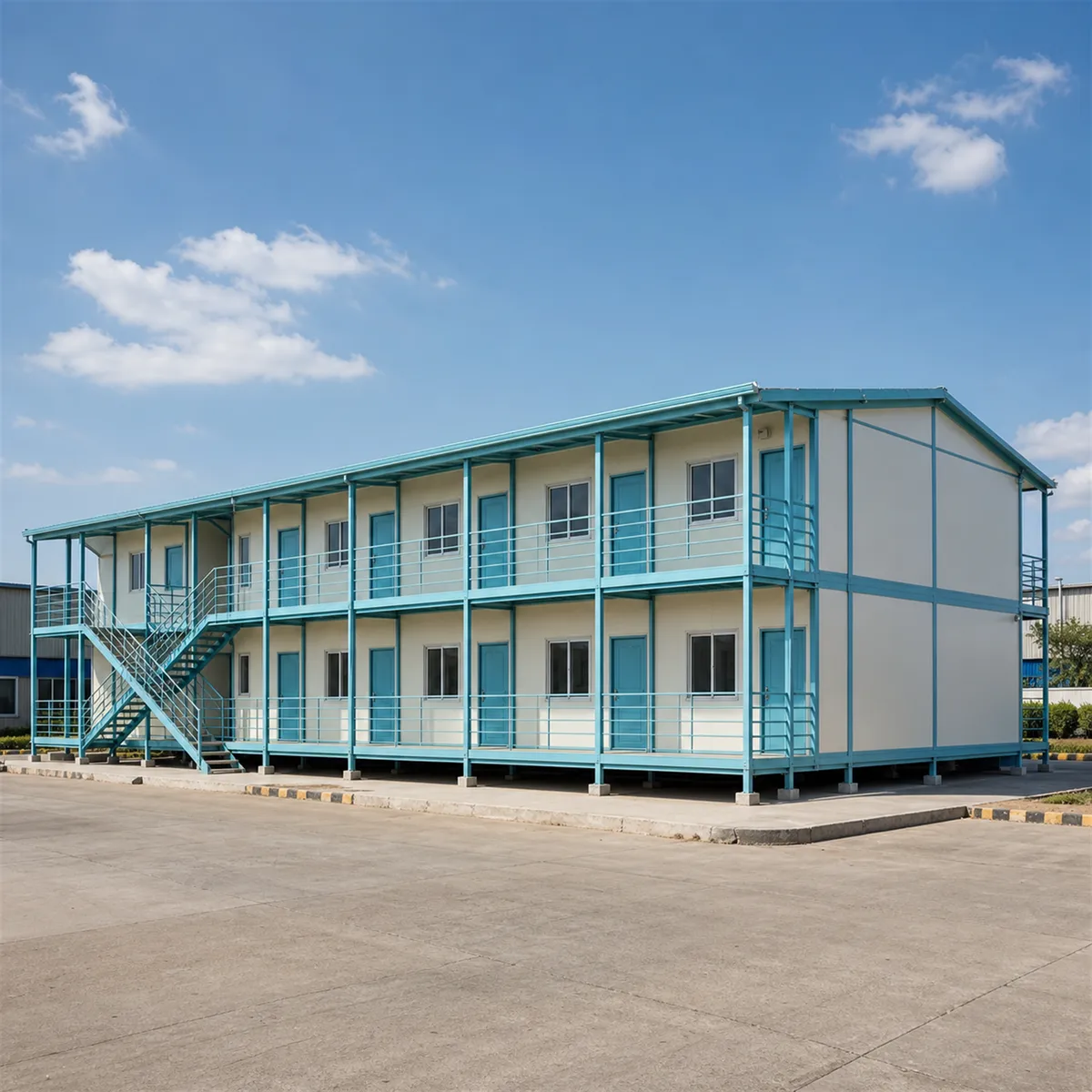

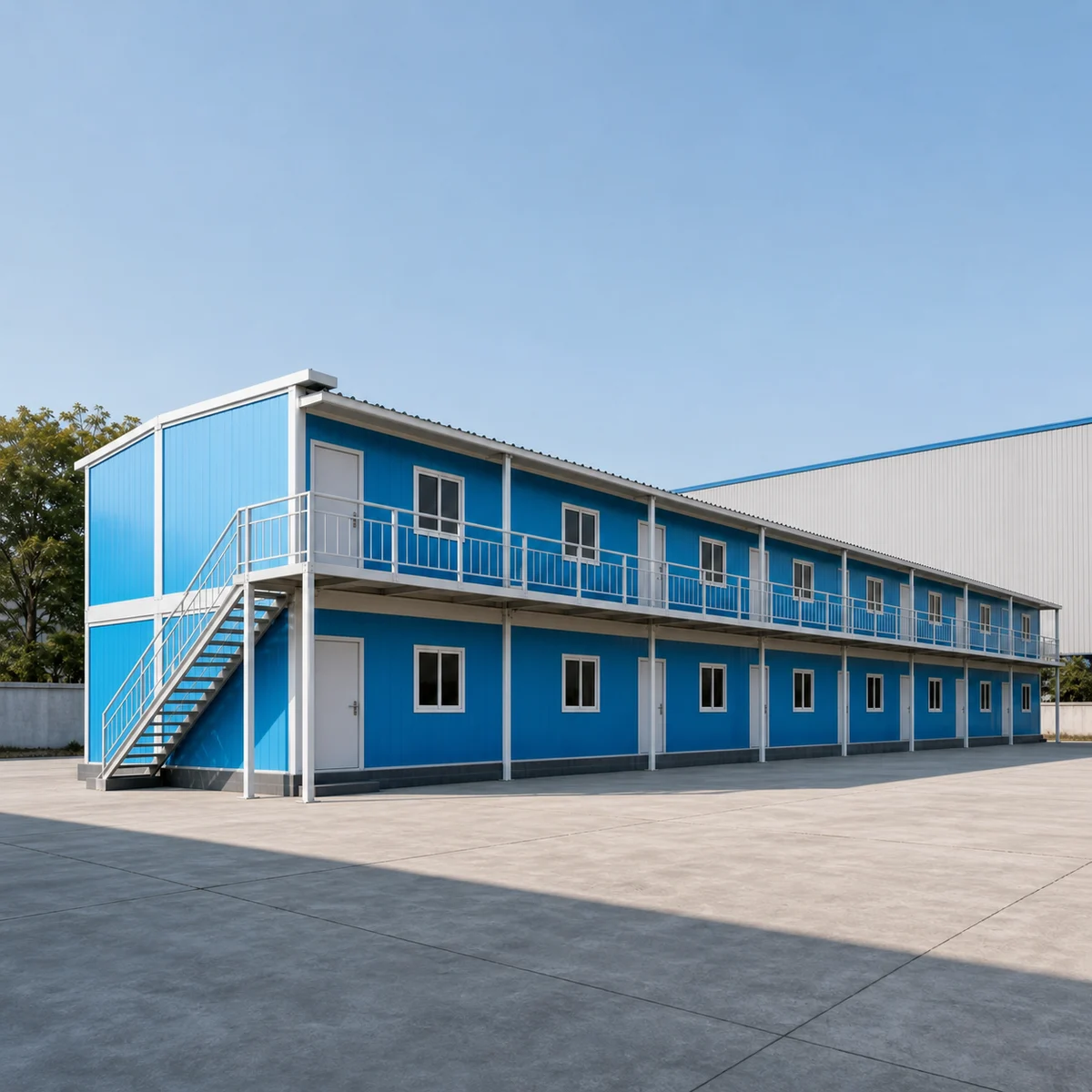

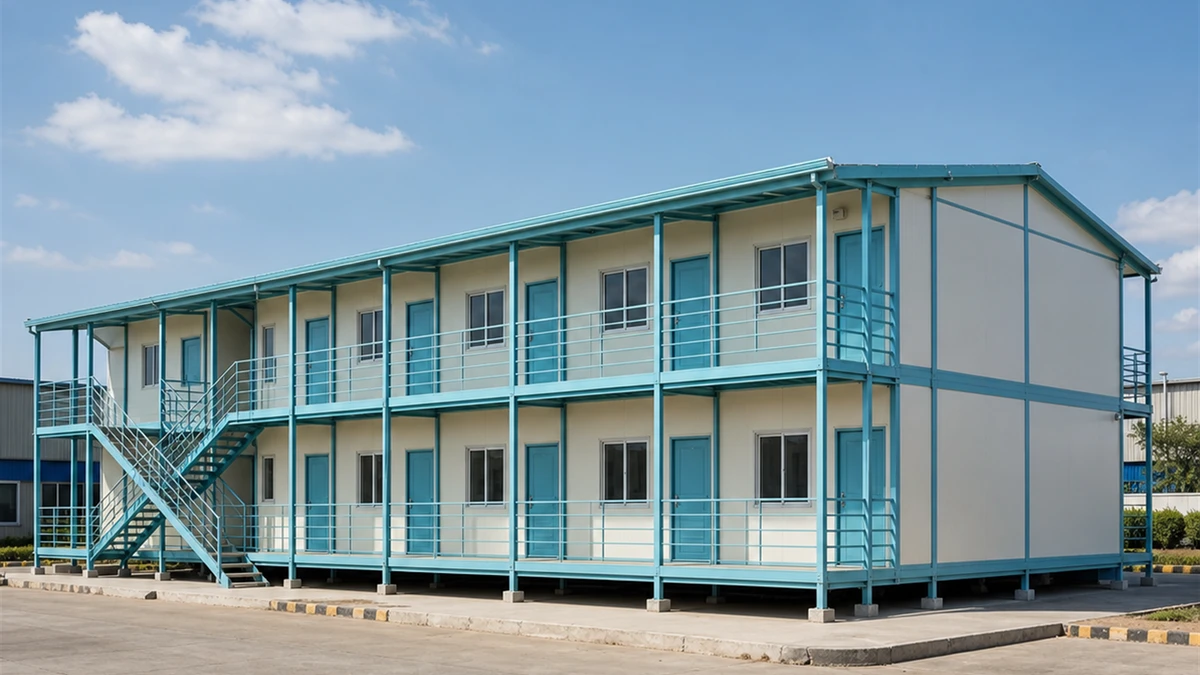

120x24 ft G+1, 5760 sq ft planned for 115 to 144 workers
At 120 ft the two-floor hall reaches 115 to 144 beds, the capacity class most big projects order first. The extra length goes entirely into bed rows, not circulation, which is what keeps cost per bed the lowest on this page. Emergency lighting and multiple exits are laid out for full-hall occupancy. Price for 5,760 square feet: Rs 39,39,840 ex-GST. When crews rotate seasonally, the open hall re-allocates overnight with no room-by-room administration at all. Bed numbering follows one plan across every repeat of this hall.
Use-cases
- Crews of 115 plus
- Phase-one site setup
- Occupancy-normed planning
- 48-hour fixed quotation
120x24 ft G+1
₹39,39,840 + GST
PRICE IT YOURSELF
Your Labor Sheds from ₹19,69,920
Set the size, choose the finish, watch the price move as you go.
Start your designFixed-price quote within 48 hours. Built in our own works.
Enter a length and width between 4 and 60 ft. For larger buildings, request a quotation and we will size it with you.
Please add your name and mobile number so our sales team can send your fixed quotation.
Enter a 10-digit Indian mobile number.
Please add your email so we can send your quotation PDF.
Design saved on this device.
Your saved design has been restored. Start over to begin fresh.
Link copied. Anyone who opens it sees this exact configuration.
Configuration received. Our sales team will send your fixed, itemised quotation within 48 hours.
We could not submit right now. Please try again, or WhatsApp us at +91 88616 22859 and we will take it from there.
Your saved design has been restored. Start over to begin fresh.
Customized cabin
Labor Sheds
60x24 ft G+1 · quantity 1
Estimated total
₹19,69,920₹23,24,506 incl. GST
Published cabin price tables
All primary prices are ex-GST. Including-GST figures apply 18 percent GST.
Labour Sheds price table
| Size | Area | Workers housed | Price ex-GST | Including 18% GST |
|---|---|---|---|---|
| 60x24 ft G+1 | 2,880 sq ft | 58 to 72 workers | ₹19,69,920 | ₹23,24,506 |
| 90x24 ft G+1 | 4,320 sq ft | 86 to 108 workers | ₹29,54,880 | ₹34,86,758 |
| 90x24 ft G+2 | 6,480 sq ft | 129 to 162 workers | ₹44,32,320 | ₹52,30,138 |
| 120x24 ft G+1 | 5,760 sq ft | 115 to 144 workers | ₹39,39,840 | ₹46,49,011 |
| 118x30 ft G+1 | 7,080 sq ft | 142 to 177 workers | ₹48,42,720 | ₹57,14,410 |
| 120x24 ft G+2 | 8,640 sq ft | 173 to 216 workers | ₹59,09,760 | ₹69,73,517 |
Product Details
Comprehensive information about Labor Sheds
Product Overview
Detailed information about Labor Sheds
The Labour Shed: Maximum Beds, One Open Hall
The labour shed is built around a single idea: house the most workers in one supervised space for the least money. Every floor is one clear hall with no internal walls, facing bed rows split by an aisle that runs end to end. A light portal frame keeps the span open, PPGI cladding keeps weather out, and ventilator banks up high keep air crossing the hall without fans fighting the heat alone.
Why an Open Hall Works
Because the hall is one space, running it is simple in ways room blocks cannot match. From the doorway one supervisor counts every bed. Cleaning is one crew, one pass. Moving beds between crews is a list change, not a room change. Exits, emergency lighting and zoned circuits are engineered for open-hall occupancy from the first drawing, which is what separates a compliant shed from a shed-shaped problem.
Six Shed Sizes
| Size | Built area | Workers (planning) | Price ex-GST |
|---|---|---|---|

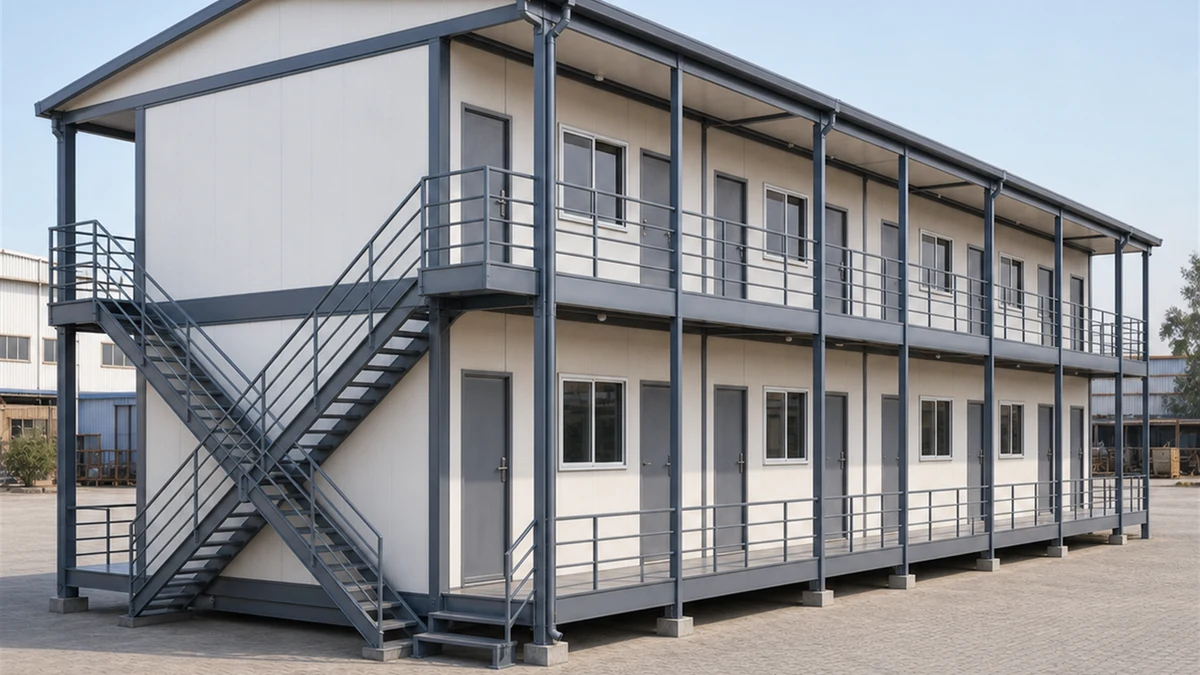

| 60x24 ft G+1 | 2,880 sq ft | 58 to 72 | Rs 19,69,920 |

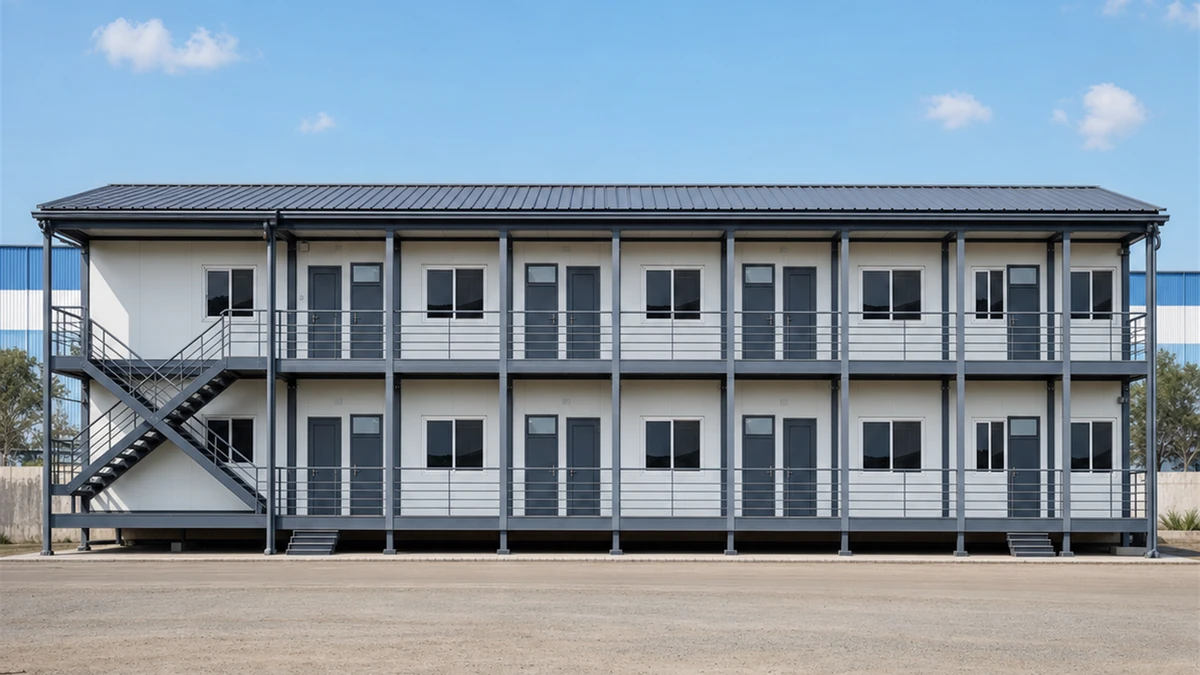

| 90x24 ft G+1 | 4,320 sq ft | 86 to 108 | Rs 29,54,880 |
| 90x24 ft G+2 | 6,480 sq ft | 129 to 162 | Rs 44,32,320 |
| 120x24 ft G+1 | 5,760 sq ft | 115 to 144 | Rs 39,39,840 |
| 118x30 ft G+1 | 7,080 sq ft | 142 to 177 | Rs 48,42,720 |
| 120x24 ft G+2 | 8,640 sq ft | 173 to 216 | Rs 59,09,760 |

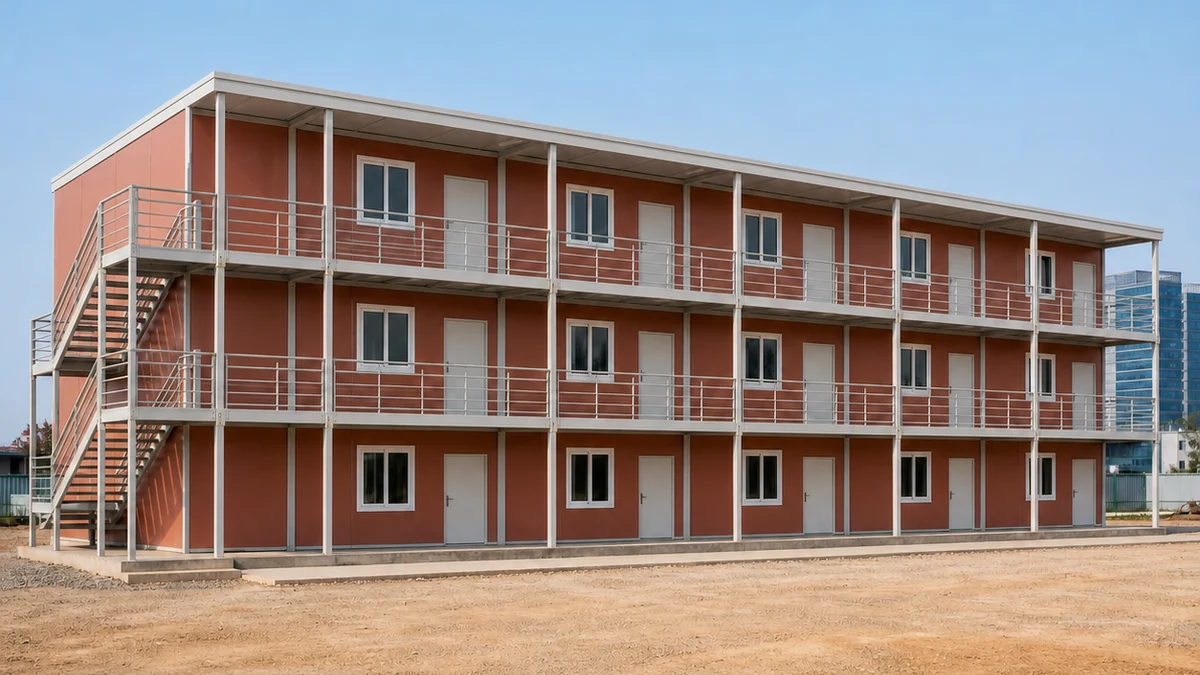

The two G+2 entries stack a third hall on the same land, the route to density when the plot cannot grow.
The Structure Behind the Hall
A portal or truss frame in light steel carries the clear span, so no post interrupts the bed rows. Double-slope or single-slope PPGI roofing sheds rain fast, an RCC slab is preferred under high occupancies, and the cladding takes an insulated upgrade where summers demand it. Every component row sits in the Specifications tab, written from the factory build standard rather than marketing copy.
Who Chooses the Shed
Contractors housing large homogeneous crews on civil packages, where beds per rupee is the whole equation and the crew is managed as shifts rather than gangs. Seasonal workforces suit it too: the hall re-assigns beds overnight, free of room administration. If your site needs lockable rooms instead, the hutment room block serves that brief; if the housing must travel between projects, the relocatable camp build does; and the worker housing range weighs all three on one page.
Shed Pricing
One rate, Rs 684 per square foot ex-GST, across all six sizes. No premium appears at the larger entries, so cost per bed actually falls as the hall grows. Freight and any fit-out are itemised separately on the quotation, which arrives fixed within 48 hours.
From Order to Occupied
Fabricated components leave the factory 7 to 21 working days after drawings are approved, and the hall stands in days on a prepared base. Staged handover is normal: the ground hall opens while the upper floor is still being fitted. Structure is warranted 5 years, finishing 1 year, as standard.
Why Order the Shed From SAMAN
We are the manufacturer, so hall length, ventilator count and exit positions flex at drawing stage without a middleman markup. Two factories serve north and south, 3,000+ customers have bought from them, and the same flat-rate discipline covers every building we sell.
Labour Shed FAQs
How many workers fit one shed?
58 up to 216 by the planning norm depending on size; the hall layout drawing fixes the number.
Can the hall be partitioned later?
Light partitions can be added, but if rooms are the plan, the hutment block builds them properly from day one.
What base does the shed need?
Compacted ground carries the smaller halls; RCC slabs are recommended at high occupancy and always at G+2.
Is the shed hot in summer?
High-level ventilators move air continuously, and insulated cladding is available where the climate needs it.
How fast can beds be ready?
Dispatch lands 7 to 21 working days after approval, then days of erection; the schedule comes with the quote.
Technical Specifications
Detailed technical information and features
Steel Structure
| Component | Detail |
|---|---|
| Bottom frame | Light portal/truss or PEB-style frame; larger clear span than hutment; bolted frames for site assembly. |
| Bottom stiffeners | Demountable bolted shed possible, but relocation requires member inspection and new foundation/anchors. |
| Floor frame | RCC slab preferred for high occupancy and cleaning; epoxy/PVC finish only when approved. |
| Top frame | Light portal/truss or PEB-style frame; larger clear span than hutment; bolted frames for site assembly. |
| Roof stiffeners | Double-slope or single-slope PPGI roof, ridge ventilator/turbo vents and gutters; optional insulated underlay. |
| Corner posts / walls | Light portal/truss or PEB-style frame; larger clear span than hutment; bolted frames for site assembly. |
| Lifting / handling | Designed MS lifting hooks or lugs matched to the completed unit weight; handle only by the approved lifting and support-point drawing. |
| Welding & fabrication | Welded MS fabrication with cleaned joints, safe edges, dimensional inspection and coating touch-up before panel closure and dispatch. |
Walls, Roof, Floor & Insulation
| Component | Detail |
|---|---|
| Exterior walls | PPGI cladding with ventilated high-level band, or insulated panel where climate requires; robust lower wall/liner. |
| Roof | Double-slope or single-slope PPGI roof, ridge ventilator/turbo vents and gutters; optional insulated underlay. |
| Interior walls | PPGI cladding with ventilated high-level band, or insulated panel where climate requires; robust lower wall/liner. |
| Ceiling | Double-slope or single-slope PPGI roof, ridge ventilator/turbo vents and gutters; optional insulated underlay. |
| Floor base | RCC slab preferred for high occupancy and cleaning; epoxy/PVC finish only when approved. |
| Floor finish | RCC slab preferred for high occupancy and cleaning; epoxy/PVC finish only when approved. |
| Wall insulation | PPGI cladding with ventilated high-level band, or insulated panel where climate requires; robust lower wall/liner. |
| Roof insulation | Double-slope or single-slope PPGI roof, ridge ventilator/turbo vents and gutters; optional insulated underlay. |
| Decorative / external finish | Fire access strip, drains, paved walkway, external lighting and sanitation connection. |
| Fasteners & sealing | Security grill, insect mesh, guard, louver or protection selected only where the approved use and opening schedule requires it. |
Doors, Windows, Electrical & Services
| Component | Detail |
|---|---|
| Main door / service door | Multiple doors/exits by occupancy; high-level/louvre windows, mesh and continuous ventilation strategy. |
| Windows / service opening | Multiple doors/exits by occupancy; high-level/louvre windows, mesh and continuous ventilation strategy. |
| Grills / mosquito mesh | Security grill, insect mesh, guard, louver or protection selected only where the approved use and opening schedule requires it. |
| Electrical wiring | Concealed PVC-insulated copper wiring, typically 1.5 sq.mm lighting, 2.5 sq.mm sockets and 4 sq.mm higher-load or AC circuits, subject to the final load schedule. |
| Electrical protection | Distribution board with MCB/RCCB protection, earthing and segregation of lighting, socket, wet-area and AC circuits according to the approved electrical drawing. |
| Electrical fittings | Zoned lighting/fan circuits, emergency lights, distribution board, earthing and optional evaporative/mechanical ventilation. |
| Ventilation / AC | Multiple doors/exits by occupancy; high-level/louvre windows, mesh and continuous ventilation strategy. |
| Plumbing / sanitary | Drinking-water points and wash basins nearby; no long internal water line through sleeping area unless designed. |

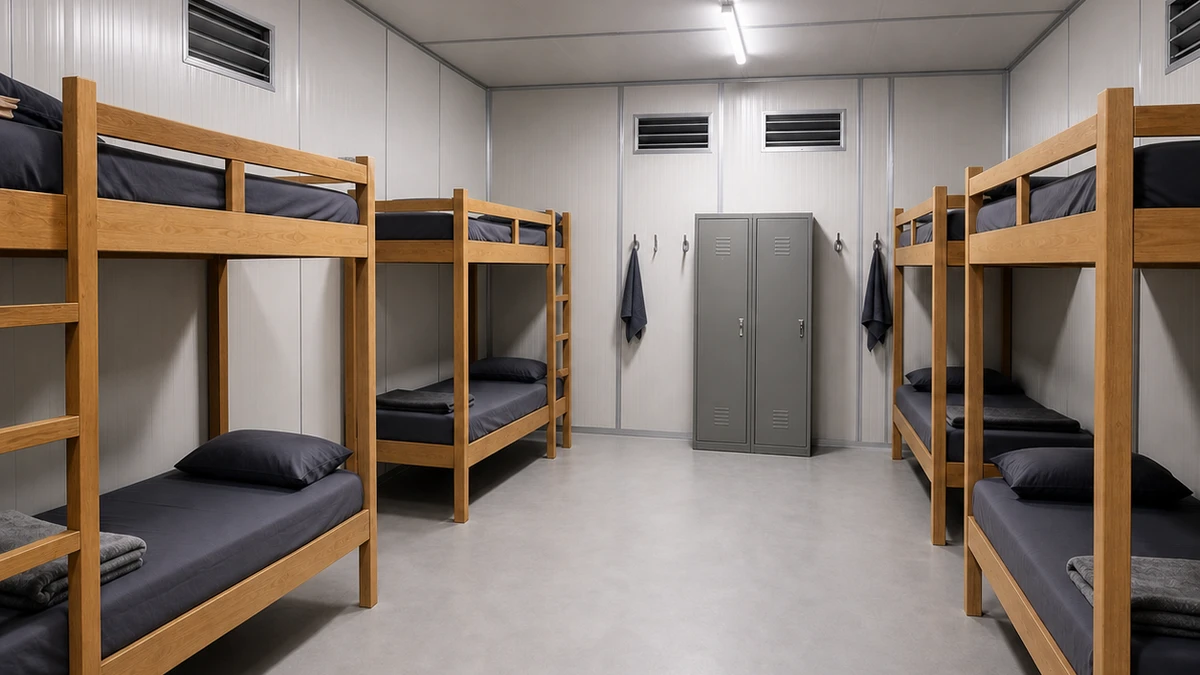

| Layout / configuration | Open sleeping hall with central/dual aisles, end exits, cross-ventilation and separate common sanitation block. |
| Painting / coating | One red-oxide primer coat followed by two compatible anti-rust enamel coats on prepared MS surfaces; project exposure may require an upgraded coating system. |
| Quality checks | Pre-dispatch checks cover dimensions, member and sheet identification, welds, coating, roof drainage, weather sealing, doors, windows, electrical continuity and functional operation. |
| Warranty | Warranty period and exclusions are confirmed only in the final quotation; relocation damage, misuse, site services and unapproved alterations remain outside the agreed scope unless stated otherwise. |
Shipping & Delivery
Delivery information and warranty details
Every SAMAN cabin is delivered factory-direct from our Bengaluru (South) or Greater Noida (North) unit on an open trailer, with delivery and installation across South and North India in 7–21 working days. Cabins up to 20 ft travel on a 20 ft open trailer; 30 ft and 40 ft cabins travel on a 40 ft open trailer. Unloading by crane or manual placement is arranged based on your site access and confirmed at quotation.
Free delivery: within Bangalore city (South zone) · Delhi NCR: Ghaziabad, Gurugram, Faridabad, Noida and Greater Noida (North zone).
20 ft open trailer · freight by distance (both zones)
| Distance | Freight (Rs) |
|---|---|
| 100–150 km | 25,000–30,000 |
| 150–200 km | 30,000–35,000 |
| 200–250 km | 35,000–40,000 |
| 250–300 km | 40,000–45,000 |
| 300–350 km | 45,000–50,000 |
| 350–400 km | 50,000–55,000 |
| 400–450 km | 55,000–60,000 |
| 450–500 km | 60,000–65,000 |
| 500–550 km | 65,000–70,000 |
| 550–600 km | 70,000–75,000 |
| 600–650 km | 75,000–80,000 |
| 650–700 km | 80,000–85,000 |
| 700–750 km | 85,000–90,000 |
| 750–800 km | 90,000–95,000 |
| 800–850 km | 95,000–100,000 |
| 850–900 km | 100,000–105,000 |
| 900–950 km | 105,000–110,000 |
| 950–1,000 km | 110,000–115,000 |
40 ft open trailer · freight by distance (both zones)
| Distance | Freight (Rs) |
|---|---|
| 100–150 km | 30,000–35,000 |
| 150–200 km | 35,000–40,000 |
| 200–250 km | 40,000–45,000 |
| 250–300 km | 45,000–50,000 |
| 300–350 km | 50,000–55,000 |
| 350–400 km | 55,000–60,000 |
| 400–450 km | 60,000–65,000 |
| 450–500 km | 65,000–70,000 |
| 500–550 km | 70,000–75,000 |
| 550–600 km | 75,000–80,000 |
| 600–650 km | 80,000–85,000 |
| 650–700 km | 85,000–90,000 |
| 700–750 km | 90,000–95,000 |
| 750–800 km | 95,000–100,000 |
| 800–850 km | 100,000–105,000 |
| 850–900 km | 110,000–115,000 |
| 900–950 km | 115,000–120,000 |
| 950–1,000 km | 120,000–125,000 |
Typical destinations from our Bengaluru unit (South zone)
approximate road distance, find your freight band in the tables above; final charge confirmed at quotation
| City | Approx. distance | Freight band |
|---|---|---|
| Mysuru | ~145 km | 100–150 km |
| Salem | ~215 km | 200–250 km |
| Tirupati | ~250 km | 250–300 km |
| Mangaluru | ~350 km | 300–350 km |
| Chennai | ~350 km | 300–350 km |
| Coimbatore | ~365 km | 350–400 km |
| Hubballi | ~410 km | 400–450 km |
| Madurai | ~435 km | 400–450 km |
| Kochi | ~550 km | 500–550 km |
| Goa (Panaji) | ~560 km | 550–600 km |
| Hyderabad | ~570 km | 550–600 km |
| Vijayawada | ~630 km | 600–650 km |
Typical destinations from our Greater Noida unit (North zone)
approximate road distance, find your freight band in the tables above; final charge confirmed at quotation
| City | Approx. distance | Freight band |
|---|---|---|
| Agra | ~165 km | 150–200 km |
| Haridwar | ~230 km | 200–250 km |
| Jaipur | ~255 km | 250–300 km |
| Dehradun | ~285 km | 250–300 km |
| Chandigarh | ~290 km | 250–300 km |
| Gwalior | ~330 km | 300–350 km |
| Ludhiana | ~390 km | 350–400 km |
| Kanpur | ~440 km | 400–450 km |
| Lucknow | ~470 km | 450–500 km |
| Amritsar | ~490 km | 450–500 km |
| Bhopal | ~600 km | 550–600 km |
| Varanasi | ~760 km | 750–800 km |
Distances beyond 1,000 km are quoted at booking. ODC (over-dimensional cargo) charges depend on the state. All freight figures are tentative, the final charge is confirmed once your delivery location and order are confirmed, and may vary slightly with the route and return-vehicle availability.
Warranty & Support
Structural warranty 5–10 years, confirmed at quotation. Base specification price: customisations quoted separately. After-sales support and spare parts available from our Bengaluru and Greater Noida units.
